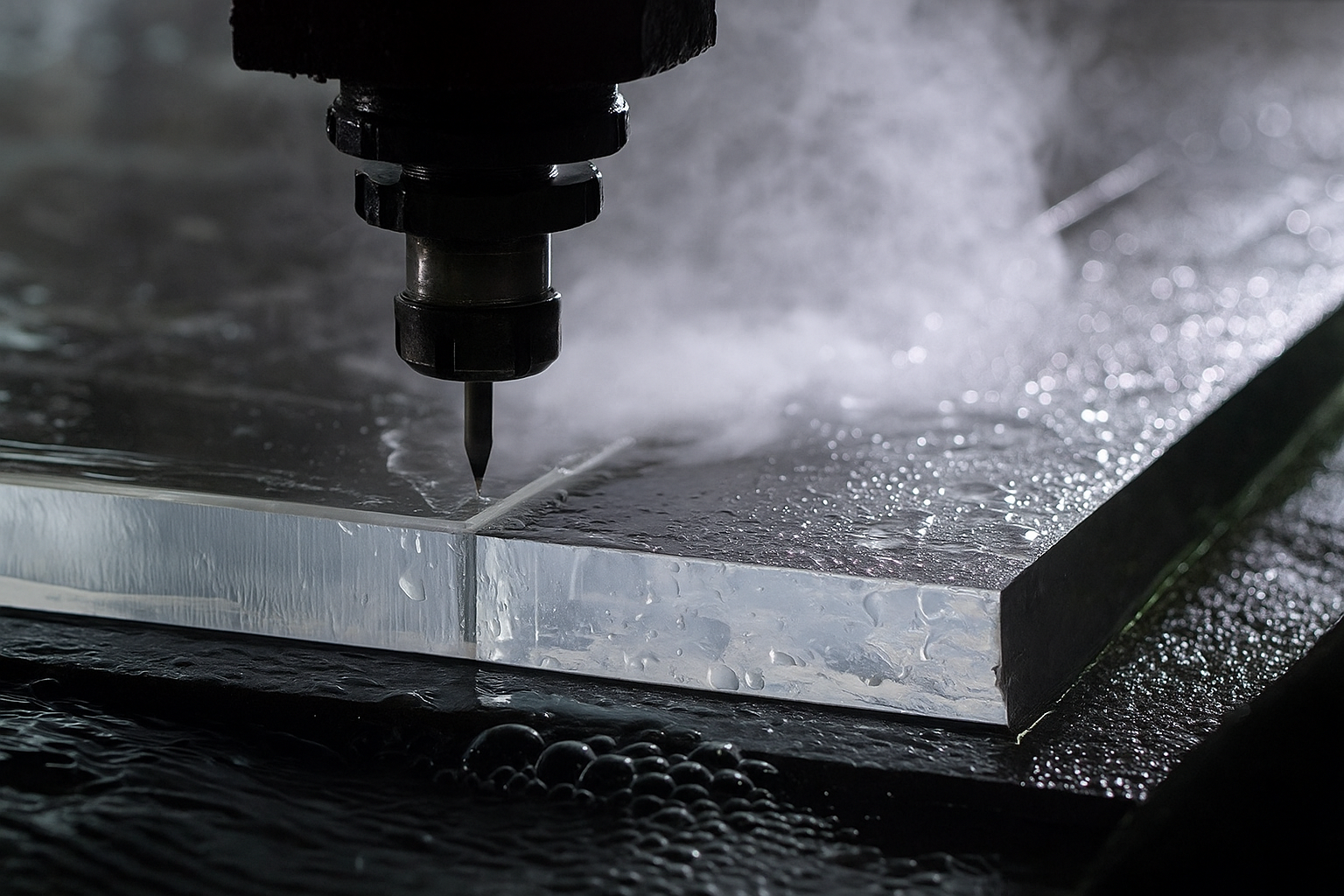

Glass CNC machining has revolutionized the way precision components are manufactured, enabling designers and engineers to realize complex geometries and tight tolerances that were previously impractical or impossible. From microfluidic devices to large architectural panels, CNC-machined glass delivers exceptional accuracy, التكرار, والانتهاء من السطح. This guide delves deeply into the methods, مواد, فوائد, and considerations of glass CNC machining, empowering you to make informed decisions for your next project.
Can Glass Be CNC Machined?
Yes—advances in machine tool rigidity, spindle design, الأدوات, and process control now make it feasible to CNC-machine glass reliably. لكن, glass’s inherent brittleness and hardness require specialized techniques and tooling to minimize chipping, تكسير, وارتداء الأداة. With proper fixturing, coolant delivery, and parameter optimization, CNC machining can produce intricate cuts, ثقوب, and surface textures in glass panels and components.
How Does CNC Glass Machining Work?
Glass CNC machining follows the standard CAD → CAM → CNC workflow, but with critical adaptations for material behavior.
CAD to CAM Workflow
تصميم & التسامح
Create 3D models in CAD, specifying geometric dimensions and tolerances (جي دي&ت).
Identify critical surfaces (على سبيل المثال, optical faces) requiring sub-micron flatness or roughness.
Toolpath Generation
In CAM software, select appropriate toolpaths (تحديد الخطوط, pocketing, حفر).
Define step-over, step-down, معدلات التغذية, and spindle speeds optimized for glass removal.
إعداد الآلة
Fixturing
Use vacuum chucks, adhesive pads, or soft jaws to support glass without inducing stress.
Ensure even support to prevent vibration and cracking.
الأدوات & مغزل
Employ diamond-coated end mills, التدريبات, and grinding/burr tools.
High-speed spindles (≥ 30,000 دورة في الدقيقة) reduce cutting forces and improve surface finish.
Coolant & Dust Control
Flood coolant or micro-lubrication minimizes heat buildup and flushes debris.
Integrated extraction systems capture glass dust to prevent surface scratching.
Machining Operations
Roughing Passes
Begin with conservative depths of cut (على سبيل المثال, 0.1–0.2 mm) at moderate feed rates to gently remove bulk material.
الانتهاء من تمريرات
Switch to fine step-downs (≥ 0.05 مم) and reduced feed to achieve target surface roughness (< رع 0.2 ميكرومتر).
In-Process Monitoring
Use vibration sensors and acoustic feedback to detect tool wear or part cracking in real time.
Post-Machining Steps
تلميع
Secondary polishing with fine diamond pads or slurry can further improve optical clarity.
Tempering/Strengthening
Thermal or chemical strengthening enhances toughness, critical for load-bearing or safety components.
التفتيش النهائي
Coordinate-measuring machines (CMMS), interferometers, and surface profilometers verify geometric and surface specifications.
Techniques Used in Glass CNC Machining
Glass’s unique properties demand a diverse toolkit of machining techniques:
طحن & Contouring
Removes material to form edges, recesses, and 3D shapes with diamond end mills.

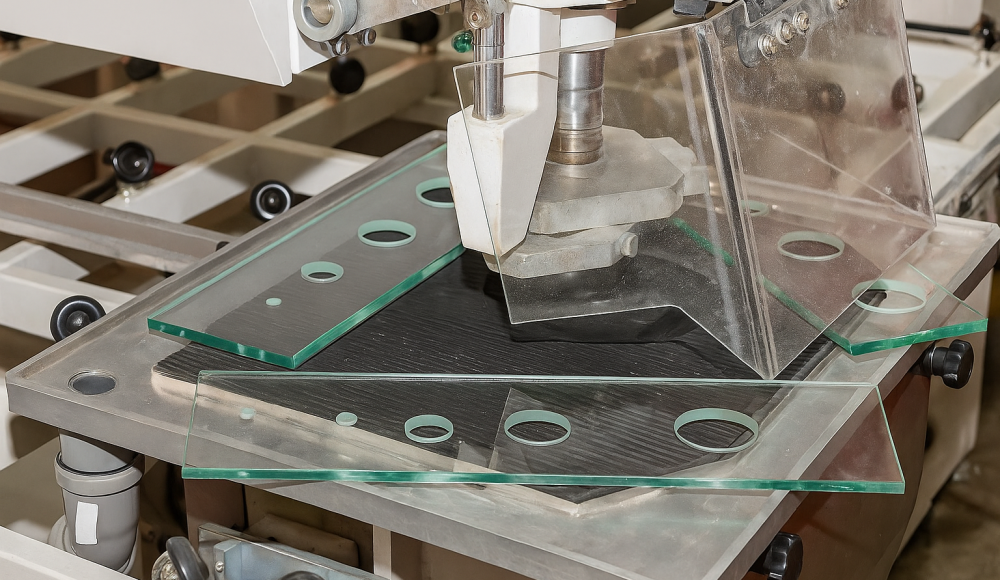

حفر & ممل
Creates precise holes from sub-0.5 mm to several millimeters using diamond-coated drills and reamers.
نقش & جيب
Diamond cutters carve decorative patterns, الأرقام التسلسلية, or shallow pockets for gaskets.
الحز & الشق
Forms narrow channels for seals or assembly features; critical in fluid-handling applications.
طحن & لفة
Surface refinement techniques that bring flatness and roughness into optical tolerances.
Water-jet Cutting (Hybrid Systems)
Abrasive water-jet head on a CNC platform achieves 2D profiles without thermal stress.
Thermal/Chemical Strengthening
Post-machining treatments—ion exchange baths or tempering ovens—increase surface compression and durability.

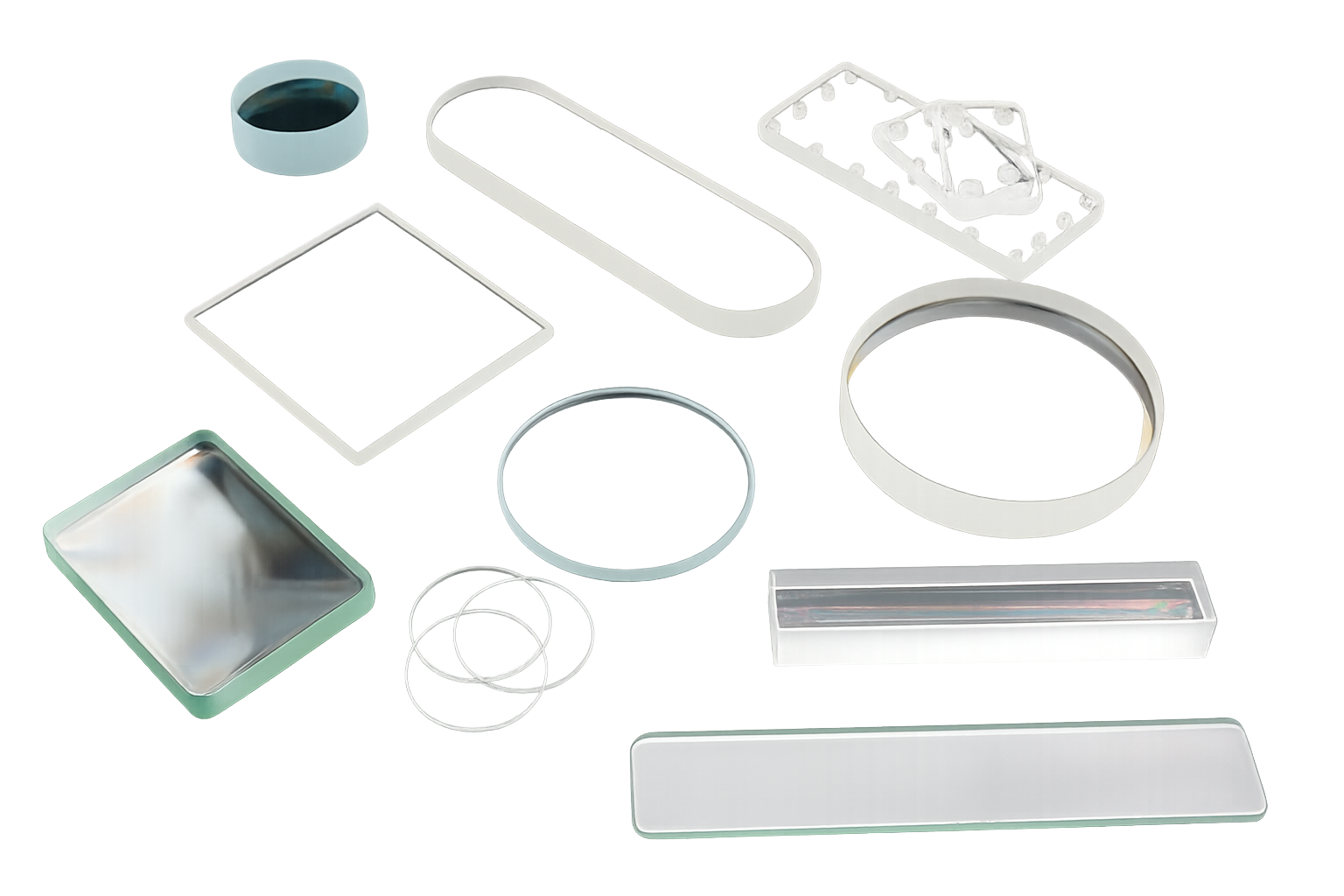

Glass Types Suitable for CNC Machining
| Glass Type | الخصائص الرئيسية | الاستخدامات الشائعة |
| Borosilicate | Low thermal expansion, high chemical resistance | Labware, precision optics |
| Soda-Lime | اقتصادية, يمكن تشكيله, قوة معتدلة | Architectural panels, decorative components |
| Fused Silica | Ultra-low expansion, high clarity | Semiconductor wafers, high-power optics |
| Aluminosilicate | قوة عالية, good thermal stability | Smartphone screens, durable display covers |
| Lead Glass | High refractive index, dense | Precision lenses, prisms |
| كوارتز | Exceptional purity, UV transparency, مقاومة حرارة عالية | UV lamps, semiconductor process windows |
Advantages of Glass CNC Machining
دقة عالية & Repeatability
Achieve ±10 µm tolerances consistently across batches.
Complex Custom Geometries
Produce undercuts, microchannels, and freeform surfaces in a single setup.
تشطيب سطحي فائق
Ra down to 0.05 µm without extensive manual polishing.
Material Efficiency
Minimized kerf loss and scrap through optimized toolpaths and nesting.
أتمتة & أمان
CNC control reduces operator exposure to glass shards; automated loading options increase throughput.
Limitations of Glass CNC Machining
Brittleness Risk
Thin cross-sections (< 2 مم) and tight corners can crack under stress.
معدات & Tooling Cost
High-precision spindles and diamond tools demand significant capital investment.
Operator Expertise
Requires specialized training in glass behavior, tooling selection, and process tuning.
Applications of Glass CNC Machining
بصريات & Photonics
العدسات, prisms, waveguides, and beam-shaping elements.
Semiconductor Equipment
Wafer substrates, mask aligner windows, and protective covers.
طبي & Biotechnology
Microfluidic chips, catheter lumens, diagnostic slide chambers.
الفضاء الجوي & الدفاع
Pressure windows, sensor housings, and high-temperature viewports.
مستهلكى الكترونيات
Touchscreen covers, camera lens covers, and decorative glass parts.
Architectural & ديكور
Etched glass panels, lighting fixtures, and artistic installations.
اعتبارات التكلفة
Capital Expenditure
CNC machine with high-speed spindle: $150,000–$500,000+.
Diamond-coated tooling: $100–$500 per cutter.
تكاليف التشغيل
Skilled operator wages, سائل التبريد, أداة ارتداء الأداة, and maintenance.
Volume Economics
Higher volumes offset setup costs; small runs carry premium per part.
تعقيد التصميم
Intricate features increase cycle time; balance between design ambitions and budget.
Comparison with Other Glass Fabrication Methods
| وجه | التصنيع باستخدام الحاسب الآلي | القطع بالليزر | Manual Techniques |
| دقة | ± 10 ميكرومتر | ±50–100 µm | ±100–300 µm |
| 3D Capability | Full 3D contours and undercuts | Primarily 2D profiles | Limited shapes |
| Thermal Stress | الحد الأدنى (with coolant) | Potential micro-cracks | Low but inconsistent |
| وقت الإعداد | معتدل (CAM programming) | قليل | منخفظ جدا |
| صقل الأسطح | Ra 0.05–0.2 µm | Ra 1–3 µm | رع > 3 ميكرومتر |
Selecting a Glass CNC Machining Provider
معدات & الشهادات
Look for ISO 9001:2015, AS9100 for aerospace, or ISO/IEC 17025 for metrology.
Technical Expertise
Review case studies in optics, طبي, or semiconductor industries.
رقابة جودة
In-process probing, CMM inspection, interferometry, and surface profilometry.
مهلة & Capacity
Confirm throughput capabilities and backup plans for urgent runs.
Post-Processing Services
تلميع, هدأ, طلاء, and assembly integrations.
Case Study: قمم الدقة’s Glass CNC Machining Process
Incoming Inspection
Verify glass type, سماكة, and pre-certify flatness with laser interferometry.
Toolpath Optimization
Use in-house CAM templates tuned for minimal tool engagement and vibration control.
Multi-Stage Machining
Rough cut at 20,000 دورة في الدقيقة; finish pass at 40,000 RPM with 1 µm step-down.
Surface Enhancement
Optional diamond slurry polishing or ion-exchange strengthening.
Final QA & التعبئة والتغليف
CMM and optical inspection; custom crating with vibration-damping foam.
خاتمة
Glass CNC machining bridges the gap between design ambition and manufacturability, unlocking feats of precision and complexity that drive innovation across industries. By understanding the nuances of tool selection, process parameters, and material behavior, you can harness CNC machining to produce glass components that meet the strictest standards of performance and aesthetics. When evaluating partners, prioritize technical expertise, quality systems, and a proven track record in glass fabrication—such as demonstrated by Tops Precision—to ensure your project’s success from prototype to production.
