PEEK Injection Molding Services

PEEK injection molding is a high-performance plastic component in complex shapes with high mechanical properties and high dimensional stability in the production process.

في دقة القمم, we work hand in hand with the engineers and designers to offer them customized solutions in both prototyping and full-scale production. Our team makes sure that designs are efficient in terms of manufacturability, كفاءة التكلفة, والأداء. All PEEK components are made to international standards through high-level mold design, modern injection molding technology, ومراقبة الجودة.

Salient Features of Our PEEK Injection Molding Service

These features make PEEK injection molding ideal for demanding engineering applications:

1. Exceptional High-Temperature Resistance

PEEK keeps its strength and stability even at temperatures as high as 250 o C, hence suitable for aerospace, السيارات, والآلات الصناعية. A high thermal resistance minimizes deformation, تكسير, and failure in a severe operating environment.

2. مقاومة التآكل ممتازة & مقاومة كيميائية

PEEK products are resistant to chemicals, زيوت, المذيبات, والوقود. Their superb wear resistance, coupled with high performance, makes them preferred to transport other components such as gears, رمان, الأختام, إلخ., and increases the life cycle in chemical, زيت, and gas, and healthcare applications.

3. High Mechanical Strength for Demanding Applications

PEEK provides high tensile, تأثير, and fatigue strengths. The heavy loads allow engineers to substitute metals with lightweight PEEK components, which elevate the efficiency with high precision tolerances.

4. Custom Molding of Engineered Components

High-end injection molding enables complex parts with narrow walls, internal basins, and elaborate designs. TOPS Precision provides tight tolerances and uniform quality between production batches, which allows reliable production of complex designs.

What is PEEK Injection Molding?

PEEK injection molding is a manufacturing process in which molten PEEK material is injected into a precision mold cavity under controlled temperature and pressure. After filling the mold, the material cools and hardens into the needed shape, creating a strong and durable component.

The process is common in the production of complex components that need to be of high strength, maintain dimensional accuracy, والأداء. Injection molding enables manufacturers to manufacture parts in a cost-effective way, with less production time and material consumption.

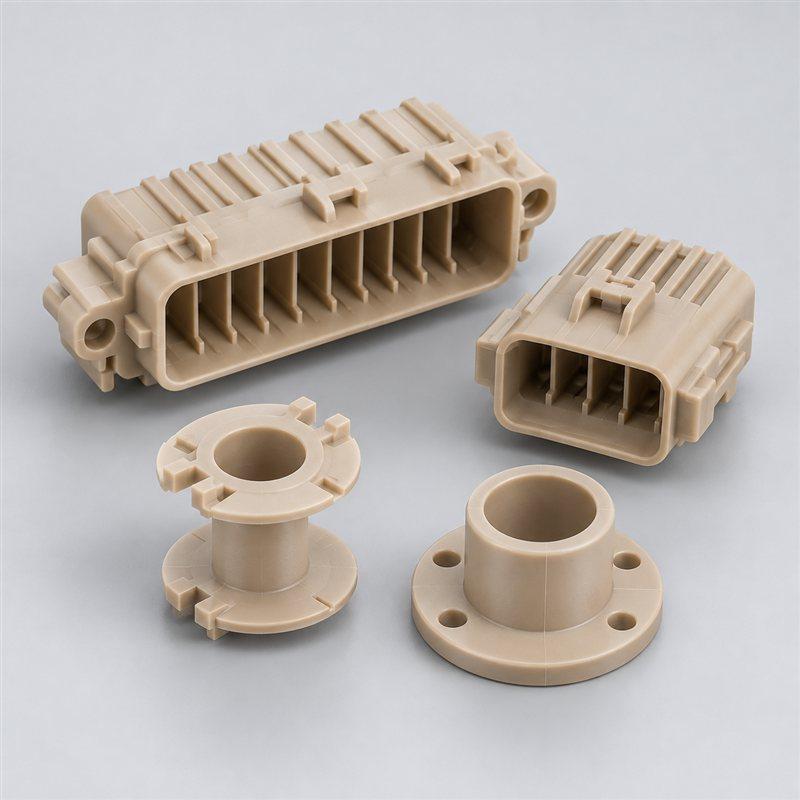

Typical products made with PEEK by injection molding include:

High-temperature connectors
المكونات الهيكلية للطيران
مساكن الأجهزة الطبية
Seals and industrial bushings.
Electrical insulation components

This process is favorable in various sectors due to its capacity to manufacture high-quality components in large volumes.

How Do Our PEEK Injection Molding Services Work?

في قمم الدقة, we have a PEEK injection molding workflow to achieve accuracy, مصداقية, and efficiency in all production steps.

1. Design Advising and Development

Every project starts with a detailed design consultation. To determine possible improvements and optimized manufacturability, our engineering team analyses the customer drawings, 3نماذج د, or even design concepts.

Some of the critical factors that we study include the wall thickness, the gate, and the material that should produce an easy production and a reliable performance.

This type of collaboration at the initial stage prevents errors in production and minimizes the expenses of production over time.

2. Mold Manufacturing and Tooling

Once we complete the design, we start tooling and mold production. Quality molds: good molds are necessary to produce uniform parts as well as finishes on the surface.

Our mold-making process includes CNC machining and precision EDM (معالجة التفريغ الكهربائي), ensuring that molds meet strict tolerance requirements.

Long-lasting molds facilitate repetitive manufacturing processes, where product quality remains uniform across each production run.

3. Preparation of material and drying

PEEK materials must be dried correctly before injection molding to eliminate moisture, which can impact performance.

We prepare material in a controlled manner, and it includes:

Accurate drying at suggested levels.
Moisture removal verification
REM blending (عند الضرورة)

The step guarantees optimum material characteristics and eliminates defects during molding.

4. Injection Molding Process

في صب الحقن, the molten PEEK is forced into the mold cavity under temperature and pressure requirements.

We are observing key parameters, مشتمل:

Injection pressure
درجة حرارة الذوبان
معدل التبريد
درجة حرارة العفن

These controls provide uniform filling, elimination of defects, and part quality uniformity.

5. Final and Quality Checking.

Components are molded and then finished by processes like trimming, تلميع, and optional surface treatment.

Each part is carefully inspected using precision measurement tools to verify dimensional accuracy and surface quality.

During the strict inspection procedures, all components are checked against customer requirements and performance.

Our PEEK Injection Molding Services

TOPS Precision provides services of manufacturing PEEK injections, which have been tailored to support both small and large-scale production.

1. إنتاج النموذج الأولي

Our prototype production services enable customers to test and confirm the design of components before full-scale production. Rapid prototyping minimizes the risks of development and enables contributions to design easily and without high expenses.

2. تصنيع المكونات المخصصة

Our line of specialization is custom-made PEEK parts that are produced to fulfill certain requirements of applications. Every component is produced as per the exact technical requirements as submitted by buyers.

3. Low and High-Volume Production

The low volumes and high volumes of the products we produce can be produced in the same quality due to our flexible production capabilities.

4. Engineering Support Services

Our engineers are present all through the production line, offering technical assistance in optimization of the design, choice of material, and also to improve the performance.

Advanced PEEK Injection Molding Techniques

We have superior technological manufacturing used to enhance the accuracy and performance of the products.

1. High-Temperature Injection Systems

PEEK needs individual molding machinery that can withstand high processing temperatures. Our modern machines assure a constant temperature to guarantee a consistent flow of materials.

2. إدراج صب

Insert molding allows metal components to be embedded directly into PEEK parts, improving structural strength and reducing assembly steps.

3. Overmolding Technology

Overmolding can be used in a single component to combine several materials into one part to improve functionality and longevity.

4. Micro-Injection Molding

Micro-injection molding facilitates the manufacture of small and highly intricate products needed in precision engineering operations.

Properties of PEEK Injection Molded Components

PEEK offers a combination of mechanical, الحرارية, and chemical properties that make it one of the most versatile engineering plastics.

The following table gives us the typical PEEK Material values;

ملكية	القيمة النموذجية
كثافة	1.30–1.32 g/cm³
قوة الشد	90–100 MPa
قوة الانثناء	140–170 MPa
Continuous Use Temperature	Up to 250°C
نقطة الانصهار	~343°C
Glass Transition Temperature	~143°C
توصيل حراري	0.25 ث / م · ك
Water Absorption	منخفض جدا
مقاومة كيميائية	ممتاز
ارتداء المقاومة	عالية جدًا
Flame Resistance	UL94 v-0

المواد التي نتعامل معها

We focus on PEEK manufacturing and reinforced PEEK materials for industrial requirements.

نوع المادة	Reinforcement	الفوائد الرئيسية	التطبيقات النموذجية
Pure PEEK	لا أحد	المقاومة الكيميائية	الأجهزة الطبية
Glass-Filled PEEK	30% Glass Fiber	الاستقرار الأبعاد	مركبات اساسيه
Carbon-Filled PEEK	ألياف كربونيه	High stiffness	أجزاء الفضاء الجوي
PTFE-Filled PEEK	بتف	الاحتكاك المنخفض	رمان & التروس

5 Cost-Saving Tips for PEEK Injection Molding

PEEK materials are premium engineering plastics, but careful design and manufacturing strategies can significantly reduce costs.

Optimize Wall Thickness: Uniform wall thickness improves material utilization and minimizes waste in the molding process.
Select Standard Mold Bases:Molded parts of this standardization minimize the tooling budget and manufacturing lead time.
إنتاج الدُفعات: Manufacturing in bulk reduces unit cost and improves production efficiency.
تصميم للتصنيع: Initial design optimization helps to minimize production flaws and lower post-processing needs.
Choose the Appropriate Material Grade: Selecting the right grade of PEEK eliminates unwarranted expenses of over-engineered materials.

Applications of PEEK Injection Molding

PEEK injection molding finds application in various industries because of its superior performance qualities.

صناعة	Typical Components
الفضاء الجوي	قوسين, المساكن
طبي	الأدوات الجراحية
إلكترونيات	الموصلات
السيارات	الأختام, البطانات
زيت & الغاز	مكونات الصمام
معدات صناعية	التروس, رمان

Benefits of PEEK Injection Molding Services

PEEK injection molding can be of great benefit to manufacturers who want to use durable and high-performance components.

وتشمل الفوائد الرئيسية:

استقرار الأبعاد ممتازة
Reduced component weight
High thermal resistance
مقاومة كيميائية متفوقة
عمر خدمة طويل
Reduced maintenance requirements

These advantages make PEEK an ideal material choice for demanding industrial applications.

Challenges of PEEK Injection Molding

PEEK is associated with some manufacturing challenges, although its benefits are considerable.

High Processing Temperatures: PEEK is highly demanding in terms of temperature during molding, since it needs specialized equipment and knowledge.
Material Cost:PEEK is pricier than regular thermoplastics, and it needs precise cost management plans.
Mold Design Complexity: Mold forming should be precise to avoid defects and retain dimensional accuracy.
Cooling Control Requirements: Internal stresses must be avoided by controlled cooling and must be stable to achieve product stability.

في دقة القمم, we address these challenges through advanced equipment, skilled engineering support, and optimized production processes.

PEEK Injection Moulding Services by Tops Precision.

TOPS Precision is dedicated to the provision of high-quality and reliable PEEK injection-molded components to customers across the world.

The benefits of our manufacturing are:

High-temperature injection molding machines.
Experienced engineering team
Strict quality management system
Global logistics support
Fast prototyping capabilities
مراقبة التسامح الصارمة

We work with our customers in close consultation to seek project needs and provide customized solutions within industry standards.

Our PEEK Injection Molding Services Are Guaranteed

We have quality control measures that involve:

Raw material verification
In-process inspection
Dimensional measurement
Functional testing
Final product validation

Every component is produced based on high-quality standards, making it reliable and useful in the field. We aim to deliver steady outcomes, predictable delivery times, and consistent technical services.

الأسئلة الشائعة

1. What are typical PEEK injection-molded components in industries?

PEEK injection molded products find extensive applications in aerospace, طبي, السيارات, إلكترونيات, النفط والغاز, and industrial manufacturing sectors. It’s mainly due to their stability and thermal dissipation.

2. Are you able to make both prototype and mass-production PEEK products?

نعم, we cater to both mass and quick prototyping, allowing the customer to test a design before transitioning into mass production.

3. What is the maximum tolerance of PEEK injection molding?

Common tolerances may go down to ±0.01 mm based on the component design, mold accuracy, and required production.

4. What is the duration of producing PEEK injection molded parts?

The lead time depends on the complexity of the projects, but prototypes can be ready in a few days, and full production may take several weeks.

5. Which reinforcement materials are compatible with PEEK?

The typical reinforcement materials consist of glass fibers, ألياف الكربون, and PTFE additives. It increases mechanical strength, الكزازة, وارتداء المقاومة.

6. Can you assist with design optimization for PEEK components?

نعم, our engineering team offers design-for-manufacturability (سوق دبي المالي) يدعم. لذا, it can enhance component functionality and lower product manufacturing expenses.
