Plastic injection molding has long been one of the most versatile and cost-effective manufacturing processes for producing precision parts. From automotive components and medical devices to electronics and consumer goods, this process enables Original Equipment Manufacturers (OEMs) to produce high-quality, complex plastic parts consistently and efficiently.
Its ability to deliver tight tolerances, 再現性, and scalability makes injection molding a top choice across industries. しかし, the benefits go far beyond basic productivity or cost. 下に, we explore the トップ 14 advantages of injection molding that make it the cornerstone of modern plastic manufacturing.
1. Ability to Produce Detailed and Complex Geometries
Injection molding allows manufacturers to create 非常に複雑な部分 with intricate geometries that would be difficult or impossible to achieve using other manufacturing methods.
を使用することで scientific molding principles, engineers can collect and analyze process data — such as temperature, プレッシャー, and flow rate — to fine-tune every stage of the cycle. This data-driven control ensures the part’s dimensional accuracy and repeatability, even across thousands or millions of production cycles.
Such precision is critical in industries like medical technology, エレクトロニクス, and consumer devices, where fine details, 薄い壁, and exact fits are essential for performance.
2. 効率
Efficiency is one of the strongest arguments for using injection molding. Once a mold is built and optimized, the production process becomes highly automated and rapid, minimizing cycle times and maximizing throughput.
Experienced molders use 製造可能性のための設計 (DfM) principles early in development to reduce design flaws and eliminate unnecessary steps. さらに, 組み込む value-added services—like in-mold labeling, ultrasonic welding, and assembly—further streamlines operations, cutting time and cost from the overall production process.
3. Strength and Versatility
Modern plastics have advanced far beyond their original reputation as lightweight alternatives to metals. Today’s high-performance thermoplastics can deliver exceptional strength, 剛性, and chemical resistance while remaining lightweight.
Manufacturers can choose from 以上 25,000 engineered resins, allowing customization of material properties such as tensile strength, 耐衝撃性, and temperature tolerance. For structural or load-bearing parts, reinforced polymers (with glass fibers or carbon fibers) offer mechanical properties comparable to aluminum — at a fraction of the weight and cost.
4. Ability to Use Multiple Types of Plastic Simultaneously
Many advanced products require multiple materials or colors in one component. Multi-material injection molding そして オーバーモールディング make this possible, allowing engineers to bond soft and hard plastics, or combine functional and aesthetic materials in a single production step.
しかし, material compatibility is crucial. A knowledgeable molder understands how to balance melt temperatures, adhesion properties, and shrinkage rates to prevent warping, delamination, or weak bonding between materials. The result is a strong, 耐久性のある, and visually appealing part with complex functionality.
5. コスト削減
Injection molding offers significant cost advantages once the mold is made. の high initial tooling investment is quickly offset by the low per-part cost in large production runs.
Collaboration between OEMs and molders during the design phase helps avoid costly tooling modifications later. Applying DfM principles early ensures moldability, reduces scrap rates, and prevents production delays. さらに, part consolidation—combining multiple pieces into a single molded component—reduces assembly costs and improves overall product reliability.
6. 精度
Injection molding delivers outstanding 寸法精度 そして 厳しい許容範囲, typically within ±0.001 inch. This precision is vital in applications like medical instruments, 航空宇宙部品, and microelectronics.
With the help of advanced molding machines, センサー, and process monitoring software, these tolerances are consistently repeatable across millions of cycles. The result is exceptional reliability and uniformity in every part produced.
7. Shortened Product Development Time
Partnering with an experienced injection molder can drastically shorten the product development cycle. Using simulation tools such as Moldflow analysis, engineers can identify potential defects—like sink marks, warpage, or air traps—before physical prototyping.
This proactive approach accelerates the time from concept to production, allowing OEMs to bring products to market faster while maintaining quality and reducing the need for multiple design revisions.
8. Multiple Finishes
Injection molding offers a range of surface finish options straight out of the mold. Depending on the tooling texture and material type, parts can feature glossy, マット, satin, or textured surfaces without requiring secondary finishing operations.
More advanced finishes — such as 彫刻, leather-like textures, or fine-grain patterns — can be added directly to the mold surface, achieving aesthetic appeal and tactile variety while maintaining high efficiency.
9. High-Output Production and Consistency
Injection molding is built for 大量生産. Once a mold is set up, every cycle produces identical parts with minimal variation, thanks to the stability of the process and automation.
Continuous improvement techniques and real-time monitoring ensure consistent part quality, while robotic automation enables 24/7 production with minimal supervision. This makes injection molding ideal for industries demanding large-scale, repeatable manufacturing.
10. Color Control
Color customization is another major advantage. OEMs can choose from 透明, opaque, or custom-colored resins, achieving precise brand colors or functional indicators.
Through the use of color masterbatches または pre-colored compounds, injection molders maintain consistent coloration across batches. Multi-shot molding also allows multiple colors to be integrated into one component, expanding design flexibility.
11. 柔軟性
Injection molding offers exceptional design freedom and material flexibility. Engineers can modify part geometry, 壁の厚さ, or internal structures to meet functional needs without redesigning the entire system.
Compared to metal manufacturing, plastics can achieve complex shapes, アンダーカット, and internal features without additional machining, making injection molding ideal for customized and innovative product designs.
12. 廃棄物の削減
Injection molding is an inherently material-efficient process. Excess material from runners or sprues can often be re-ground and reused as regrind material, significantly reducing waste.
Many manufacturers are adopting sustainable practices, such as using bio-based polymers and optimizing cycle times to minimize energy consumption. These green initiatives benefit both the environment and the manufacturer’s bottom line.
13. Low Labor Costs
Automation is central to injection molding. Modern systems rely on robotic arms and computer-controlled machines that perform repetitive tasks with minimal human intervention.
This automation reduces labor requirements, minimizes the risk of defects caused by human error, and allows operators to focus on quality monitoring rather than manual production. The outcome is higher efficiency at lower cost.
14. Lightweighting
“Lightweighting” refers to the replacement of metal components with 高強度, lightweight thermoplastics. This trend is particularly strong in the automotive, 航空宇宙, そしてエレクトロニクス産業.
By using polymers like ポリアミド (ナイロン), ピーク, or carbon fiber-reinforced composites, manufacturers can significantly reduce product weight while maintaining structural integrity. The benefits include improved fuel efficiency, lower emissions, and enhanced design freedom.

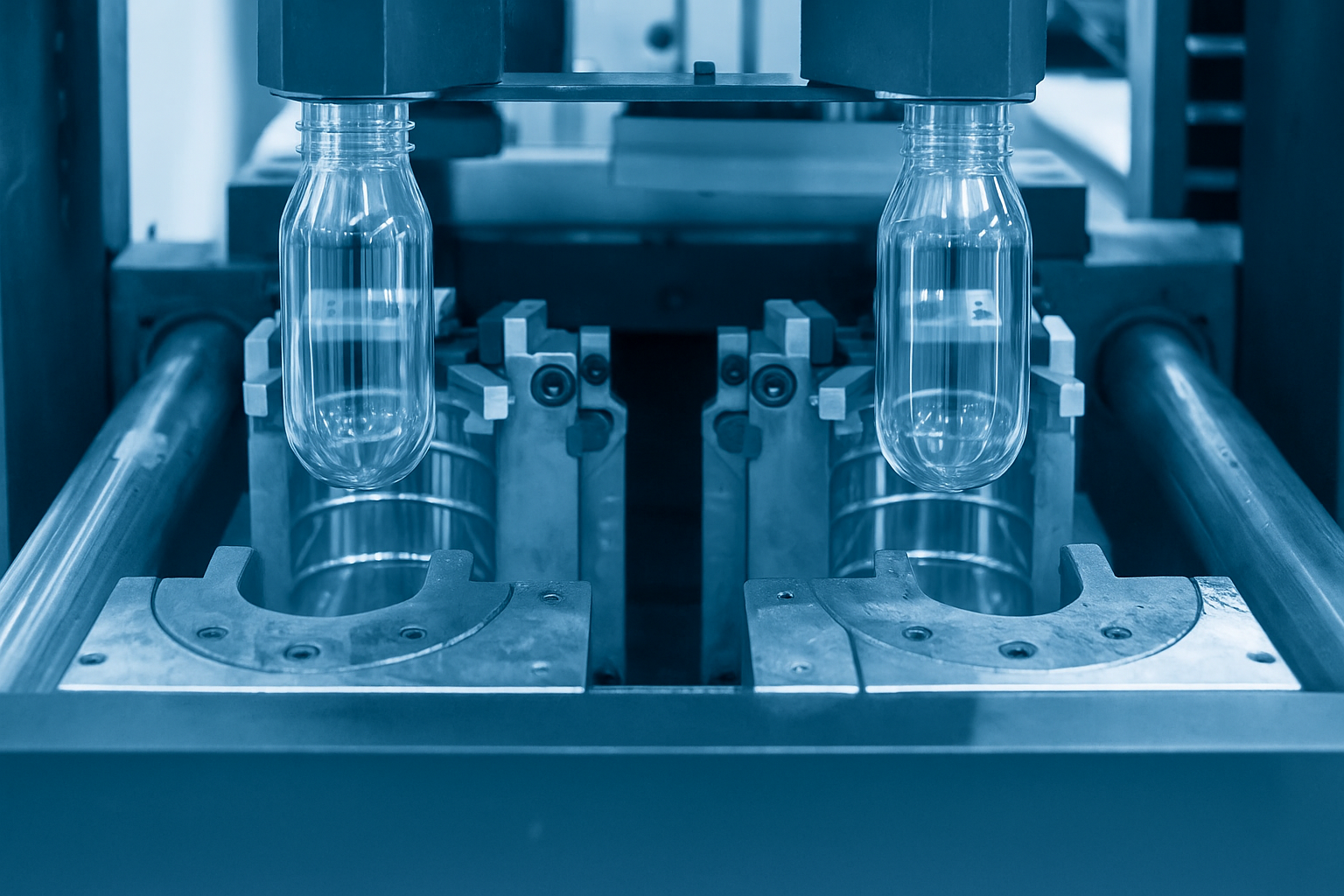

Why Working With an Experienced Injection Molder Matters
Why Working With an Experienced Injection Molder Matters
While injection molding offers countless advantages, realizing its full potential depends on the expertise of the molding partner. An experienced injection molder ensures optimal material selection, precise tool design, and a stable, repeatable production process.
When evaluating a potential molder, consider the following:
彼らは持っていますか in-house engineering and tooling capabilities?
Are they skilled in scientific molding, オーバーモールディング, and multi-shot techniques?
Do they maintain rigorous QA/QC procedures and testing standards?
Do they understand the requirements of your specific industry?
Choosing the right partner can directly influence part quality, 費用対効果, and time-to-market.
結論
Injection molding remains one of the most reliable and scalable manufacturing processes in modern industry. Its ability to produce complex, 耐久性のある, and precise components — efficiently and at scale — gives OEMs an undeniable competitive edge.
From cost savings and material flexibility to sustainability and lightweighting, the benefits of injection molding continue to evolve alongside material science and automation technologies.
To maximize these advantages, partner with a trusted injection molding expert who can turn your design vision into a high-performance reality.
