A steel structure is not simply a collection of beams and columns. It is an engineered system in which members, connections, bracing, foundations, matériaux, charges, and fabrication processes work together to transfer forces safely and efficiently.

For project owners, ingénieurs, contractors, OEM, and procurement teams, understanding how steel structures are designed and fabricated is important when selecting materials, evaluating suppliers, comparing quotations, and controlling project costs.

This guide explains the main types and components of steel structures, structural design principles, steel material selection, fabrication processes, Contrôle de qualité, candidatures, and the key factors to consider when choosing a steel structure manufacturer.

What Is a Steel Structure?

A steel structure is a load-bearing structural system in which steel members are connected to form a framework capable of supporting and transferring applied loads.

Typical members include:

• Poutres
• Colonnes
• Trusses
• Bracing
• Assiettes
• Plaques de base
• Gusset plates
• Connection components

The basic load path is critical. Loads acting on floors, toits, équipement, or other structural elements are transferred through beams and secondary members into columns, croisillons, connections, and ultimately the foundation.

Structural steel can be fabricated into a wide range of shapes and configurations. AISC, Par exemple, identifies fabricated structural steel elements such as beams, colonnes, bracing, plaques de base, connection materials, girders, lintels, posts, and trusses as components of structural frames.

Where Are Steel Structures Used?

Steel structures are commonly found in:

• Industrial buildings
• Manufacturing plants
• Warehouses
• Commercial buildings
• Office buildings
• Ponts
• Sports facilities
• Agricultural buildings
• Equipment platforms
• Energy infrastructure
• Transportation infrastructure
• Modular buildings
• Custom industrial structures

Steel is particularly useful when a project requires long spans, high load capacity, rapid construction, or a customized structural configuration.

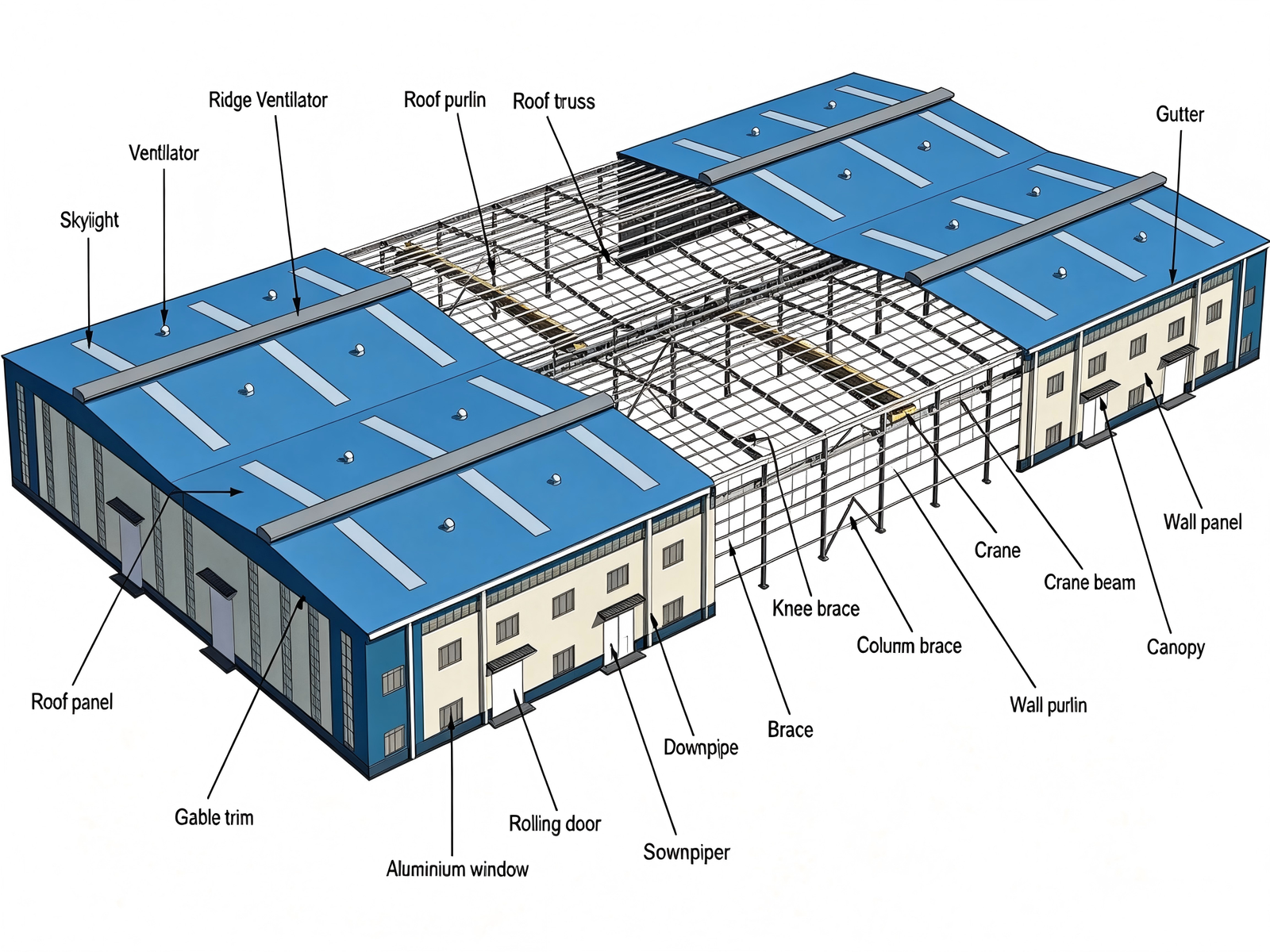

Key Components of Steel Structures

A steel structure consists of multiple components that perform different structural functions. The correct selection and coordination of these components are essential for structural stability and service performance.

Structural Steel Members

Poutres

Beams are primarily horizontal structural members that resist bending and transfer loads toward columns, murs, or other supports.

Typical beam applications include:

• Floor systems
• Roof systems
• Platforms
• Mezzanines
• Bridge structures
• Equipment support frames

Beam selection depends on span, chargement, deflection requirements, connection design, and the applicable structural standard.

Colonnes

Columns are primarily vertical compression members that transfer loads from beams and upper structural elements toward the foundation.

Column design must consider:

• Axial compression
• Pliant
• Combined loading
• Slenderness
• Buckling
• Connection requirements
• Base-plate design

A column with adequate material strength can still experience instability if its geometry and boundary conditions are not properly considered.

Trusses

A truss is a structural system composed of interconnected members, typically arranged into triangular patterns.

Trusses are particularly useful for long-span applications because the geometry can efficiently distribute loads while limiting the amount of material required.

Les applications typiques incluent:

• Roof structures
• Ponts
• Industrial buildings
• Stadiums
• Large-span facilities

Bracing

Bracing provides lateral stability and helps resist horizontal forces.

Selon le projet, bracing may be designed to resist:

• Wind loads
• Seismic loads
• Equipment vibration
• Structural sway
• Buckling-related instability

Bracing systems can use diagonal steel members, cross-bracing, knee bracing, or other configurations.

Steel Connections

Connections determine how forces move from one structural member to another. They therefore deserve the same engineering attention as beams and columns.

Bolted Connections

Bolted connections use structural bolts and connection plates or other components to join steel members.

Les avantages incluent:

• Relatively fast installation
• Convenient field assembly
• Easier replacement or disassembly
• Reduced dependence on field welding

Bolted connections are widely used in structural steel construction and can be designed for shear, tension, moment, or combined forces.

Welded Connections

Welded connections join steel components through a controlled welding process.

They can provide:

• High connection rigidity
• Efficient load transfer
• Compact connection geometry
• Permanent joints
• Flexibilité de conception

Cependant, welding requires appropriate procedures and quality control. Weld imperfections such as cracks, lack of fusion, lack of penetration, porosité, slag inclusions, and undercut can affect joint performance.

Pour cette raison, professional fabrication programs normally control welding procedures, welder qualifications, exigences d'inspection, and documentation according to the applicable project standards.

Steel Frames

The structural frame provides the primary load-carrying system of many steel buildings.

Rigid Frames

Rigid frames use relatively stiff beam-to-column connections to resist bending and lateral movement.

They are commonly used in:

• Industrial buildings
• Commercial buildings
• Warehouses
• Portal-frame structures

The rigidity of the connection has a direct influence on the behavior of the overall frame.

Braced Frames

Braced frames use diagonal members to increase lateral stiffness.

They can provide an efficient solution when wind or seismic forces are important design considerations.

Bracing can also reduce structural movement and help control member stability.

Other Important Steel Structure Components

Gusset Plates

Gusset plates are steel plates used to connect structural members, especially in braced frames and trusses.

They can connect:

• Braces
• Poutres
• Colonnes
• Truss members

Base Plates

Base plates are typically installed at the bottom of columns to distribute column loads to the foundation.

Their design may involve:

• Axial load
• Moment
• Tondre
• Anchor bolts
• Plate thickness
• Concrete bearing

Stiffeners

Stiffeners are additional steel plates or sections used to reinforce structural members and connection regions where local stresses may be significant.

Boulons d'ancrage

Anchor bolts connect steel columns or base plates to the concrete foundation and provide a critical part of the load-transfer path between the steel structure and foundation.

Common Types of Steel Structures

Different structural systems are selected according to span, chargement, building function, architectural requirements, and construction method.

Steel Frame Structures

Steel frame structures use beams, colonnes, and connections to create a primary structural skeleton.

They are common in:

• Commercial buildings
• Industrial buildings
• Offices
• Multi-story structures

Steel Truss Structures

Steel trusses are particularly suitable for long-span applications.

Les utilisations courantes incluent:

• Roofs
• Ponts
• Stadiums
• Installations industrielles
• Exhibition halls

Portal Frame Structures

Portal frames typically use rigid beam-to-column connections and are widely used for large clear-span buildings.

Les applications typiques incluent:

• Warehouses
• Usines
• Workshops
• Agricultural buildings

They can provide large unobstructed interior spaces without requiring numerous internal columns.

Space Frame Structures

Space frames use three-dimensional structural systems to distribute loads across large areas.

Ils conviennent pour:

• Stadium roofs
• Exhibition halls
• Transportation terminals
• Large architectural structures

Modular and Prefabricated Steel Structures

Modular steel structures use factory-fabricated components that are transported to the project site for assembly.

The main advantages include:

• Better factory process control
• Reduced site labor
• Faster installation
• Repeatable quality
• Improved production planning

For projects with repetitive components, prefabrication can also improve manufacturing efficiency.

Design Principles of Steel Structures

The objective of structural steel design is not simply to make a structure strong enough. Engineers must balance force, stabilité, serviceability, durabilité, fabrication, sécurité, et le coût.

AISC’s structural steel resources cover areas including flexural members, compression members, tension members, combined forces, boulons, soudures, connecting elements, and different types of structural connections.

Considérations de chargement

Dead Loads

Dead loads are permanent loads associated with the structure itself and permanently installed components.

Les exemples incluent:

• Steel members
• Étages
• Roof systems
• Permanent equipment
• Fixed architectural components

Live Loads

Live loads are variable loads that can change during the life of a structure.

Les exemples incluent:

• People
• Meubles
• Movable equipment
• Stored materials
• Temporary loads

Environmental Loads

Environmental forces may include:

• Wind
• Snow
• Earthquakes
• Temperature effects
• Rain or water accumulation

The actual loads considered depend on the project’s location, building type, applicable codes, et les conditions environnementales.

Wind Loads

Wind can create both lateral forces and uplift forces.

Engineers must consider:

• Building height
• Building geometry
• Exposition
• Wind speed
• Roof configuration
• Local pressure effects

Seismic Loads

In seismic regions, the structural system must be designed to resist earthquake-induced forces and movements.

Important considerations include:

• Lateral load-resisting systems
• Ductilité
• Bracing
• Connection behavior
• Structural redundancy

Structural Analysis

Structural analysis determines how a steel structure responds to applied loads.

Engineers evaluate factors such as:

• Internal forces
• Stresser
• Souche
• Deflection
• Stability
• Buckling
• Connection forces
• Load paths

Stability and Buckling

Buckling is particularly important for slender compression members.

A steel column can have sufficient material strength but still fail through instability if its effective length, cross-section, restraint conditions, or slenderness are not properly considered.

Engineers therefore evaluate:

• Local buckling
• Flexural buckling
• Lateral-torsional buckling
• Member slenderness
• Frame stability

Steel Material Selection

Selecting the right steel grade is an important part of structural design and fabrication.

Common Structural Steel Categories

Depending on the project and applicable standard, structural steel may include:

• Carbon structural steel
• High-strength structural steel
• Weathering steel
• Acier inoxydable
• Hollow structural sections

Hollow Structural Sections, or HSS, are commonly manufactured in circular, carré, and rectangular forms and are used for columns, bracing, trusses, and architecturally exposed structures.

Key Steel Properties

When selecting structural steel, les ingénieurs peuvent envisager:

Limite d'élasticité

Yield strength determines the stress level at which permanent plastic deformation begins.

Résistance à la traction

Tensile strength represents the maximum tensile stress the material can withstand before fracture.

Ductilité

Ductility allows steel to deform before failure and is important in many structural applications.

Dureté

Toughness becomes particularly important where structures may experience impact, low temperatures, or dynamic loading.

Soudabilité

Steel grade and chemical composition can influence welding requirements and fabrication procedures.

Résistance à la corrosion

For aggressive environments, the steel grade and protective system must be selected together.

Steel Structure Fabrication Process

Engineering design is only one part of a successful steel project. The fabrication process must accurately convert engineering information into physical components.

Étape 1: Engineering and Design Review

Before fabrication begins, the manufacturer reviews:

• 2Dessins D
• 3D CAD models
• Structural calculations
• Spécifications matérielles
• Exigences de soudage
• Tolérances
• Traitement de surface
• Quantité
• Exigences d'emballage

A detailed manufacturability review can identify potential problems before material is cut.

Étape 2: Material Procurement and Inspection

The manufacturer purchases steel according to the specified grade and dimensions.

Incoming inspection may verify:

• Qualité du matériau
• Épaisseur
• Dimensions
• État des surfaces
• Heat or batch number
• Certificats de matériaux

Material traceability is particularly important for projects with strict quality documentation requirements.

Étape 3: Découpe CNC

Steel plates and sections may be cut using:

• Découpe au laser
• Découpe plasma
• Oxy-fuel cutting
• Band sawing
• Other CNC cutting processes

The appropriate process depends on thickness, géométrie, volume de production, and dimensional requirements.

Étape 4: Drilling and Machining

Structural components may require:

• Bolt holes
• Machines à sous
• Counterbores
• Edge preparation
• Precision-machined interfaces

Usinage CNC can be used where tighter dimensional requirements or complex geometries are involved.

Étape 5: Formant

Selon la conception, steel components may be:

• Courbé
• Roulé
• Presse formée
• Straightened

Forming parameters must be controlled to avoid unwanted deformation or damage.

Étape 6: Soudage

Welding joins fabricated components into assemblies.

A controlled welding process should address:

• Welding procedure
• Joint preparation
• Welding sequence
• Heat input
• Preheating where required
• Welder qualification
• Inspection visuelle
• NDT where specified

Welding is one of the most quality-sensitive operations in structural steel fabrication because defects can require rework and may affect structural performance.

Étape 7: Assemblée

Fabricated components are assembled using:

• Calendrier
• Gabarits
• Temporary supports
• Bolted connections
• Soudage

Dimensional verification during assembly helps ensure that components will fit correctly during final installation.

Étape 8: Traitement de surface

Steel structures require appropriate surface preparation and protective treatment based on the service environment.

Les options communes incluent:

• Primer and paint
• Epoxy coatings
• Polyurethane systems
• Powder coating for suitable components
• Hot-dip galvanizing
• Specialized corrosion-protection systems

Protective coating selection should be considered during the design and fabrication stages rather than treated as an afterthought.

Étape 9: Inspection finale

Final inspection may include:

• Contrôle dimensionnel
• Weld inspection
• Inspection des surfaces
• Coating inspection
• Assembly verification
• Examen de la documentation

The final inspection criteria should be based on the project drawings, caractéristiques, applicable standards, and customer requirements.

Steel Structure Fabrication vs. On-Site Fabrication

Factory fabrication and on-site fabrication each have different advantages.

Facteur	Factory Fabrication	On-Site Fabrication
Working environment	Contrôlé	Weather dependent
Dimensional control	Generally easier	More challenging
Equipment availability	Haut	Variable
Quality inspection	Easier to standardize	Plus difficile
Labor efficiency	Généralement plus élevé	Lower for repetitive work
Site installation time	Reduced	Increased
Transport	Required	Reduced
Production planning	Plus facile	More dependent on site conditions

For many projects, fabricating major steel components in a controlled factory environment and then transporting them to the site can reduce site work and improve production consistency.

Cependant, transportation dimensions, weight restrictions, site access, lifting capacity, and assembly sequence must be considered during design.

Advantages of Steel Structures

Rapport résistance/poids élevé

Steel provides high structural strength relative to its weight, allowing engineers to design efficient structural systems.

Durabilité

When correctly designed, fabricated, protected, and maintained, steel structures can provide long service lives.

Flexibilité de conception

Steel can be fabricated into:

• Poutres
• Colonnes
• Assiettes
• Tubes
• Trusses
• Curved members
• Custom assemblies

Architecturally exposed structural steel demonstrates how steel can be fabricated into complex shapes, tapered forms, courbes, and different finishes while remaining part of the structural system.

Fast Construction

Steel components can be prefabricated before arriving at the construction site.

This can reduce:

• Site labor
• Installation time
• On-site fabrication
• Construction disruption

Recyclabilité

Steel is a recyclable material, which can contribute to material recovery and circular construction strategies when appropriate recycling infrastructure is available.

Fabrication de précision

Modern fabrication equipment allows manufacturers to produce complex components with repeatable dimensions and controlled processes.

Challenges of Steel Structures

Steel structures also require careful engineering and manufacturing.

Corrosion

Steel can corrode when exposed to moisture, oxygène, sels, produits chimiques, or other aggressive environments.

Corrosion protection may involve:

• Paint systems
• Revêtements de protection
• Hot-dip galvanizing
• Sélection des matériaux
• Proper drainage
• Inspection and maintenance

The appropriate system depends on the service environment and expected durability.

Fire Protection

Steel does not burn, but its mechanical properties can deteriorate as temperature increases.

Depending on the building and fire-resistance requirements, protection may include:

• Intumescent coatings
• Spray-applied fire protection
• Fire-resistant board
• Concrete or other encasement systems

The required protection should be determined by the applicable building code and fire-resistance design.

Initial Cost

Steel projects involve more than raw material costs.

The total project cost can include:

• Ingénierie
• Matériel
• Coupe
• Usinage
• Soudage
• Traitement de surface
• Quality inspection
• Conditionnement
• Transport
• Site erection

A low unit material price does not necessarily produce the lowest total project cost.

Transportation and Handling

Large steel members can create logistical challenges.

Important considerations include:

• Maximum transport dimensions
• Weight restrictions
• Container utilization
• Lifting points
• Conditionnement
• Corrosion protection during transportation
• Site unloading requirements

Welding and Fabrication Quality

Poor welding, incorrect dimensions, excessive distortion, or inadequate inspection can result in costly rework.

A quality-controlled fabrication process should therefore integrate inspection into production rather than relying only on final inspection.

Steel Structure Applications

Industrial Buildings

Steel is widely used for:

• Usines
• Manufacturing plants
• Workshops
• Production facilities
• Equipment support structures

Industrial buildings often require large clear spans, overhead equipment, charges lourdes, and future expansion flexibility.

Warehouses

Steel warehouse structures typically include:

• Colonnes
• Roof beams
• Portal frames
• Bracing
• Purlins
• Connection systems

The structural design depends on building dimensions, storage requirements, environmental loads, and local regulations.

Commercial Buildings

Steel frames can be used for:

• Offices
• Retail buildings
• Commercial facilities
• Mixed-use structures

Ponts

Steel beams and trusses are widely used in bridge construction because of their strength and ability to span significant distances.

Bridge applications place additional emphasis on fatigue, protection contre la corrosion, connection design, inspection, et entretien.

Energy and Infrastructure

Steel fabrication can support:

• Solar structures
• Equipment platforms
• Power infrastructure
• Industrial support frames
• Access platforms
• Maintenance structures

Custom OEM Steel Fabrication

For industrial OEM customers, steel fabrication is not limited to complete buildings.

Manufacturers can produce custom:

• Bâtis de machines
• Equipment bases
• Supports structurels
• Platforms
• Guards
• Prise en charge
• Assemblages soudés
• Enceintes industrielles
• Custom structural components

For these projects, the manufacturer needs to understand both the engineering drawing and the component’s actual function.

Steel Structure Quality Control

Quality control should be integrated throughout the fabrication process.

Incoming Material Inspection

Verify:

• Qualité du matériau
• Épaisseur
• Dimensions
• État des surfaces
• Certificats de matériaux
• Traceability

Contrôle dimensionnel

Inspect critical dimensions after:

• Coupe
• Formant
• Soudage
• Assemblée

This helps identify distortion before it becomes a larger problem.

Welding Inspection

Depending on project requirements, welding inspection may include:

• Visual testing
• Magnetic particle testing
• Ultrasonic testing
• Dye penetrant testing
• Other approved NDT methods

The appropriate method depends on the joint, matériel, loading condition, specification, and applicable standard.

Surface Treatment Inspection

Inspection may cover:

• Préparation des surfaces
• Coating thickness
• Adhesion where specified
• Couleur
• Défauts de surface
• Galvanizing condition

Final Assembly Inspection

Avant expédition, verify:

• Overall dimensions
• Hole positions
• Connection interfaces
• Component identification
• État des surfaces
• Conditionnement

A documented inspection process reduces the risk of receiving components that cannot be assembled correctly at the project site.

Frequently Asked Questions About Steel Structures

What is a steel structure?

A steel structure is an engineered load-bearing system made primarily from interconnected steel members such as beams, colonnes, trusses, croisillons, assiettes, and connections.

What are the main components of a steel structure?

The main components include beams, colonnes, trusses, bracing, bolted or welded connections, plaques de base, gusset plates, stiffeners, and anchor systems.

What are the different types of steel structures?

Common types include steel frame structures, portal frames, truss structures, space frames, braced frames, and modular or prefabricated steel structures.

What are the advantages of steel structures?

Key advantages include high strength-to-weight ratio, flexibilité de conception, prefabrication capability, fast construction, durabilité, and suitability for complex structural configurations.

What are the disadvantages of steel structures?

Common challenges include corrosion, fire protection requirements, transportation of large members, welding and fabrication quality control, and potentially significant initial engineering and fabrication costs.

What types of steel are used for structural applications?

The appropriate steel depends on the design and governing standard. Common categories include carbon structural steels, high-strength steels, weathering steels, stainless steels, and hollow structural sections.

How are steel structures manufactured?

A typical process includes engineering review, material procurement, Coupe, forage, formation, soudage, assemblée, traitement de surface, inspection, conditionnement, et livraison.

What is the difference between bolted and welded steel connections?

Bolted connections use structural bolts and are convenient for assembly and potential disassembly. Welded connections create permanent joints and can provide high rigidity and compact connection designs. The correct solution depends on structural design, fabrication conditions, installation requirements, and applicable standards.

How is corrosion prevented in steel structures?

Corrosion can be controlled through appropriate steel selection, revêtements protecteurs, hot-dip galvanizing, suitable detailing, drainage, inspection, et entretien.

How are steel structures protected from fire?

Depending on the required fire resistance, protection may include intumescent coatings, spray-applied fire protection, fire-resistant boards, or other approved protection systems.

What information is needed for a steel fabrication quotation?

At minimum, provide the drawing or model, material grade, dimensions, épaisseur, quantité, welding requirements, traitement de surface, tolérances, application, and delivery requirements.

Can steel structures be custom fabricated?

Oui. Steel structures and fabricated components can be customized according to engineering drawings, structural requirements, dimensions, material grades, connection designs, finitions de surface, and production quantities.

How can I choose a reliable steel fabrication manufacturer?

Evaluate the supplier’s engineering capability, fabrication equipment, welding expertise, quality system, inspection capability, production capacity, surface-treatment options, attestations, export experience, and previous experience with similar projects.

Conclusion

For building and infrastructure projects, beams, colonnes, trusses, bracing, plaques de base, gusset plates, and connections must work together to create a stable load path. For custom industrial applications, the same principles apply to equipment frames, platforms, bases de machines, supports, and welded steel assemblies.

For procurement teams and OEM buyers, the best supplier is not necessarily the one offering the lowest initial price. A reliable steel structure manufacturer should be able to support the project from engineering review and material selection through fabrication, quality inspection, traitement de surface, conditionnement, et livraison.

If you are sourcing a custom steel structure, steel frame, welded assembly, equipment platform, or fabricated steel component, send us ton 2Dessin D, 3Fichier CAO D, spécification matérielle, quantité, surface treatment requirements, and delivery target. Our engineering team can review the project, evaluate manufacturability, identify key production considerations, and prepare a customized quotation.
