Magnesium CNC Machining Services

Lightweight Precision Parts for Aerospace, EV, Robotics & Electronics

TOPS Precision manufactures custom magnesium alloy parts with tolerances up to ±0.005 mm, using advanced CNC milling, turning, and 5-axis machining. We specialize in machining AZ31, AZ91D, AM60, ZK60, Elektron 21, and other high-performance alloys with strict fire safety controls and ISO-certified quality systems.

✅ Rapid Prototypes in 5–7 Days
✅ Thin-Wall Lightweight Components
✅ Surface Finishing Available
✅ Low to High Volume Production
✅ Global Shipping

Send Your Inquiry Today

    We are best in providing machining of magnesium and offer parts that provide the metal’s outstanding balance between strength and weight. Thus, they have numerous applications in different fields like aerospace, defense, automotive, robotics, and electronics. With our precise machines and expert personnel, we provide magnesium parts that offer high quality, precise measurements, and dependable performance. For both small and big orders, we can provide machining that is precise, quick, and of high quality.

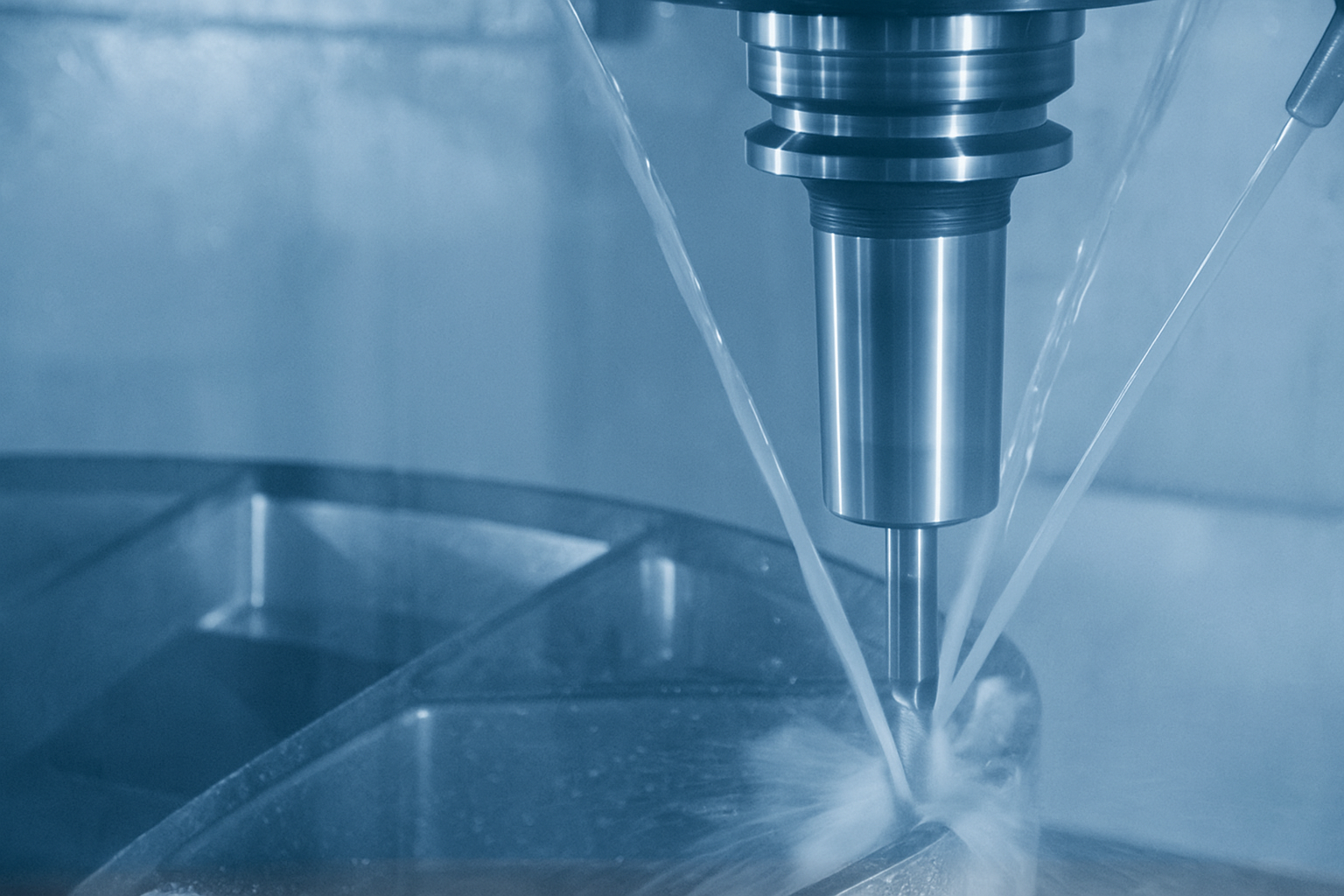

    What is Magnesium Machining?

    CNC machines are used for machining to mold magnesium alloy parts into their required shape. Magnesium is highly recognized as the lightest material used in engineering, but it is also tough and sturdy. Still, it becomes quite reactive if machined, so it is necessary to use certain tools, coolant, and install dust controls. Some challenges in machining are stopping burns, keeping chips contained, and maintaining a good surface.

    Send Your Inquiry Today

      What is Magnesium Machining?

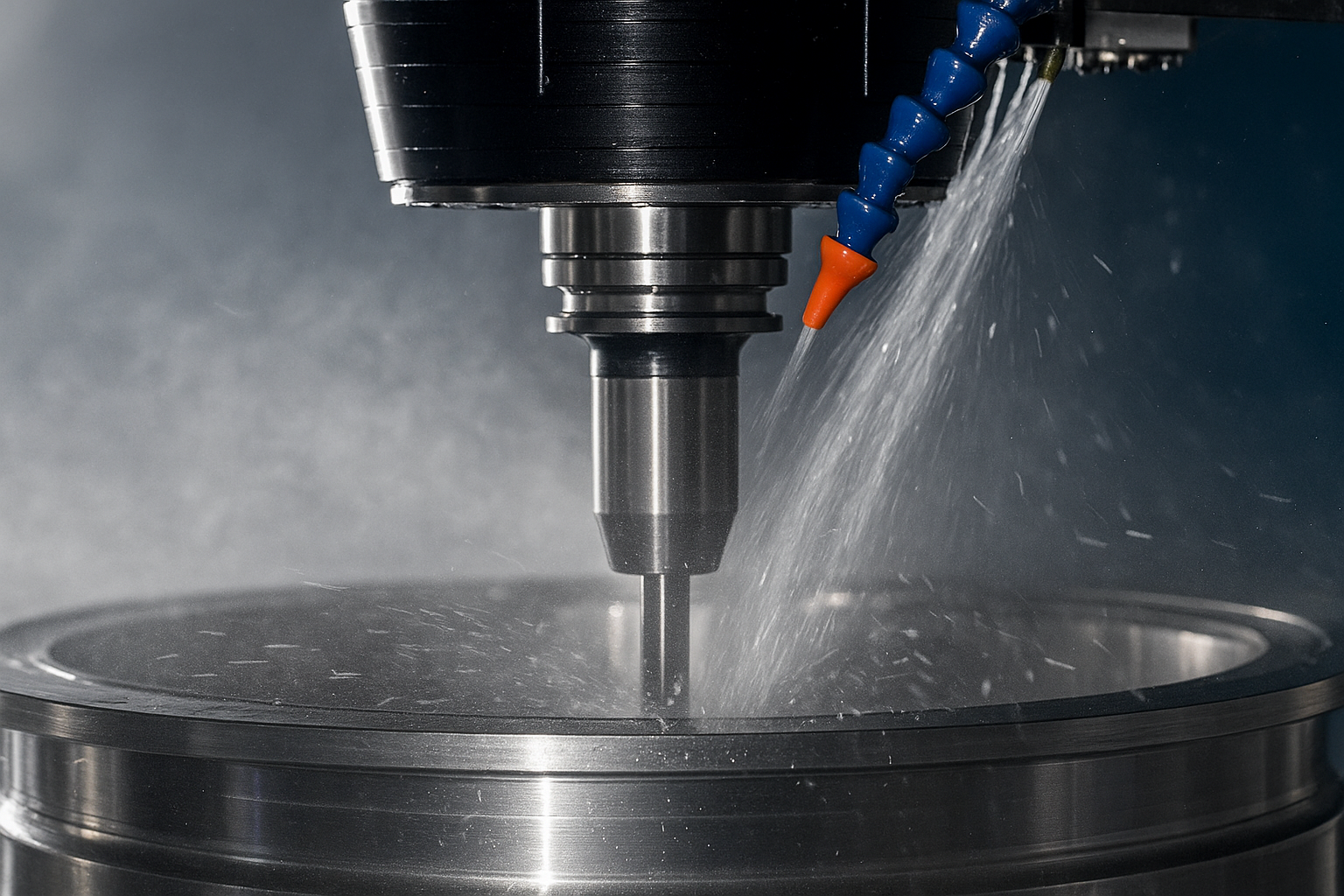

      How Does Magnesium Machining Work?

      Machining this metal requires both careful work and attention to safety. The process begins by thoroughly reviewing CAD to enhance the way parts are laid out, cutting will take place, and the fixtures are created. We make sure feed rates are specified and the tools are diamond-coated or PVD-coated to prevent chips from accumulating. Misting the site with coolant or oil keeps the area cool, prevents things from becoming too hot, and helps eliminate sparks. These machines quickly carry out chip removal to prevent turnings from sparking combustion. After they are machined, all parts are deburred, cleaned to get rid of residue, and closely checked for surface quality.

      Common Operations We Do

      You’ll find these magnesium machining services from us:

      CNC MillingCreates complex shapes and designs by using 3 to 5 different axes.

      CNC TurningSpinning cylindrical objects, referred to as housings and spacers, at a fast speed.

      Drilling & Tapping –It ensures the hole is the right size with correct chip movement and threaded structure.

      Gear Cutting & Broaching –These are operations targeted at making internal and external gear features.

      Finishing the Surface – Methods such as bead blasting and anodizing are used to modify the finish and boost how the part looks.

      Send Your Inquiry Today

        Our Safe Magnesium Machining Process

        TOPS Precision uses controlled magnesium machining procedures:

        • Oil-mist / non-reactive cooling systems
        • Rapid chip evacuation systems
        • Fire-resistant machine enclosures
        • Dust collection & chip separation
        • Operator safety training
        • Alloy-specific cutting parameters

        This ensures safe, stable, repeatable production.

        Send Your Inquiry Today

          Properties of Magnesium Material

          Magnesium is a metal used in construction due to its special balance of physical, thermal, and chemical traits. Here are some of the main properties of metal that let it be machined accurately:

          Properties of Magnesium Material

          Lightweight

          Magnesium is the lightest metal you can use for structures because it weighs much less than aluminum or steel. On this basis, it is much sought after in aerospace, automotive, and electronics, as making things lighter can make them perform and function better.

          High Machinability

          A clear advantage of magnesium is that it is very easy to machine. The cut takes less power, there is less heat created during cutting, and the tools last longer. This way, the time needed to make parts is reduced, costs are lower, and the level of accuracy is maintained.

          Great Strength-to-Weight Ratio

          Although magnesium isn’t as strong as steel, it is very strong about how light it is. Because it needs only a small thickness to be strong, this material is wonderful for parts that need some structure but would become too heavy with heavier metal.

          Thermal Conductivity

          Magnesium alloys efficiently release heat from engine casings, heat sinks, and electronic housing, which is very important. This way, the computer’s operability is maintained and critical parts are protected from overheating.

          Vibration Damping

          The presence of magnesium helps absorb vibrations and shock, so it is perfect for uses requiring movement. It adds comfort to vehicle seats and also lowers noise and wear in different mechanical parts.

          Recyclability

          It is possible to recycle magnesium again and again without losing its unique qualities. Apart from using fewer resources, this also supports companies that care about the environment.

          Send Your Inquiry Today

            Suitable Materials for Magnesium Machining

            Here are some of the suitable materials for magnesium machining:

            Type

            Key Properties

            Common Uses

            AZ31

            Great machinability, corrosion-resistant, lightweight

            Aerospace panels, electronics, housings

            AZ61

            Higher strength, good surface finish

            Auto parts, tools, and sporting equipment

            AM60

            High ductility, impact resistance

            Crash zones, dashboards, safety parts

            AM50

            Lightweight, good formability

            Transmission cases, suspension components

            ZK60

            High strength, creep resistance

            Bike frames, aerospace gears, robotics

            ZK61

            Tougher than ZK60, dimensionally stable

            Drones, defense equipment, motorsport frames

            AE42

            Creep and corrosion resistant

            Engine blocks, gearbox housings

            AZ91D

            Most used alloy, excellent strength-to-weight

            Electronics, power tools, and auto parts

            Elektron 21

            High-temp and creep resistance, aerospace-grade

            Jet engines, satellites, and military structures

            Send Your Inquiry Today

              Considerations to Cut Costs when Machining Magnesium

              Here are some tips you must follow to cut the magnesium machining cost:

              Considerations to Cut Costs when Machining Magnesium
              • Organize the parts so that the machinery follows easier paths and tool switches are reduced.
              • Fix similar parts in the same setup, as it requires less time to configure tools and fixes.
              • Choose useful coatings like PVD on your tools to lessen both the wear and the stopping time.
              • Pick the right alloy over a higher grade material when you can.
              • Plan your work so you have to do as little deburring and surface preparation as possible.

              Send Your Inquiry Today

                Applications of Magnesium Machining

                When applications require strength, being lightweight, and exceptional thermal performance, magnesium proves to be excellent.

                • Aerospace:Brackets, frames, and parts of satellites
                • Automotive: You can choose dashboards, steering wheel hubs, and various performance pieces.
                • Electronics: Laptop enclosures, heat dissipating parts for computers, and camera shells
                • Equipment for Sports: Bike pieces, helmets, and tools for safety
                • Robotics & Machinery: Some of our products here include gearboxes and housings, as well as instrument panels.

                Send Your Inquiry Today

                  Advantages of Magnesium Machining

                  Here are the following advantages of magnesium machining;

                  • It Matters to be Lightweight Designing for less weight, using 35% less weight than aluminum.
                  • Thermal management must happen – excellent thermal conductivity.y
                  • The importance of lightweight materials with high strength helps make them ideal for tough jobs.
                  • The process must be easy to manufacture and lead to fast production.
                  • A lighter system leads to savings in the supply chain.n
                  Advantages of Magnesium Machining

                  Challenges in Machining Magnesium

                  There are advantages to using magnesium, but it still needs to be carefully looked after.

                  • Hazard of ignition – Fine chips are flammable; standard coolant and chip placement procedures decrease the risk.
                  • Accumulation of Chips –There must be regular cleaning to lower the risk of fires and damaged surfaces.
                  • Hardened Alloys Are Brittle – During tooling, place parts carefully to avoid catching cracks and stress points.
                  • Corrosion Risk –It is important to apply a protective coating or anodize this material.
                  • Small Clamping Damage – Can only occur with a well-planned fixture design.

                  Send Your Inquiry Today

                    Finishing Processes for Machining Magnesium

                    We offer various suggestions to protect magnesium and raise its effectiveness.

                    Finishing Processes for Machining Magnesium
                    • Anodizing – with chromate sealing – for both protection against corrosion and attractive results.
                    • Metal plating and conversion – Choose zinc, nickel, or chromate to make the coating more durable.
                    • Powder Coating – A smooth and long-lasting surface comes in your selected colors.
                    • Bead Blasting –Leaves a smooth matte look behind and hides minor surface marks.
                    • Passivation – Eliminates any free magnesium to secure the surface and shield it from oxidation.

                    Send Your Inquiry Today

                      Need Lightweight Magnesium Parts Fast from Tops Precision?

                      Upload your drawing today and receive:

                      ✅ DFM feedback
                      ✅ Material recommendation
                      ✅ Quote in 24 hours
                      ✅ Prototype lead time estimate

                      Send Your Inquiry Today

                        Why Buyers Switch to TOPS Precision

                        Many magnesium suppliers struggle with:

                        ❌ Poor dimensional control
                        ❌ Surface corrosion issues
                        ❌ Burn risk during machining
                        ❌ Thin wall deformation
                        ❌ Long lead times

                        TOPS Precision solves these with advanced tooling, process control, and experienced engineers.

                        Choose us for the Best Magnesium Machining Services

                        Send Your Inquiry Today

                          FAQs About Magnesium CNC Machining

                          AZ31, AZ91D, ZK60, AM60, Elektron 21 and custom grades.

                          Up to ±0.005 mm depending on geometry.

                          With proper controls, machining is safe and stable.

                          Yes. We specialize in lightweight thin-wall precision parts.

                          Yes.We provide anodizing surface finishes.

                          From Prototype 1 pc to mass production.

                          Prototype 5–7 days.
