A Complete Guide to Teflon (PTFE) Mecanizado: Propiedades, Procesos, y aplicaciones

A Complete Guide to Teflon (PTFE) Machining

Politetrafluoroetileno (PTFE), best known by its brand name teflón, is one of the most chemically resistant and thermally stable plastics in the world. This fluoropolymer offers exceptional performance across demanding industries—from aerospace and pharmaceuticals to food processing and electronics. While its mechanical properties may not rival other engineering plastics, Teflon machining is a practical solution for manufacturing custom components that require low friction, alta resistencia, and inertness.

This guide provides a detailed breakdown of PTFE’s properties, the advantages and challenges of machining it, suitable applications, tooling tips, and material alternatives.

¿Qué es el teflón? (PTFE)?

¿Qué es el teflón? (PTFE)?

Teflon is a synthetic fluoropolymer made by polymerizing tetrafluoroethylene (TFE). First discovered accidentally in 1938 by DuPont, it is chemically composed of carbon and fluorine atoms, forming one of the strongest bonds in organic chemistry. This unique structure is what gives PTFE its impressive chemical and thermal resilience.

Propiedades clave:

Apariencia: White, waxy solid

Punto de fusion: ~327°C (621°F)

Chemical Formula: (C₂F₄)

Estructura: Linear chain of carbon atoms surrounded by fluorine atoms

Teflon is:

Hydrophobic: Repels water and most substances

No reactivo: Extremely resistant to acids, bases, y solventes

Baja fricción: Among the lowest coefficients of friction of any solid

Thermally stable: Can operate from -260°C to 260°C without degrading

Advantages of Machining Teflon

Advantages of Machining Teflon

Material Advantages

Teflon’s material traits are what make it so useful in precision CNC machining:

Resistencia química: Inert to nearly all industrial chemicals

UV and Weather Resistance: Maintains properties under outdoor exposure

Water Resistance: Naturally hydrophobic, making it ideal for fluid systems

Aislamiento electrico: Excellent dielectric strength across a wide temperature range

Estabilidad térmica: Can operate in cryogenic and high-temperature environments

Baja fricción: Ideal for sliding or rotating parts

Food-Grade: FDA-compliant and easy to sterilize

Flame Resistance: Very low flammability

Process Advantages

Machining PTFE provides additional advantages due to its softness and machinability:

Easily Machinable: Cuts easily with minimal force

No Thermal Deformation: Stays dimensionally stable during dry or wet machining

No Hardening Needed: No need for post-machining heat treatment

Great for Prototypes: Quick to produce low-volume or custom components

Limitations of Machining Teflon

Despite its many benefits, machining Teflon presents some unique challenges:

High Coefficient of Thermal Expansion: Parts can expand or contract more than other plastics

Creep Deformation: Tends to deform slowly under long-term mechanical stress

Difficult to Hold Tolerances: Especially on thin or small features

Poor Dimensional Stability: Subject to warping during machining or post-processing

Soft Material: Can leave burrs or tool marks, requiring extra finishing

To minimize issues:

Use sharp tools

Avoid tight tolerance designs

Employ effective cooling and deburring techniques

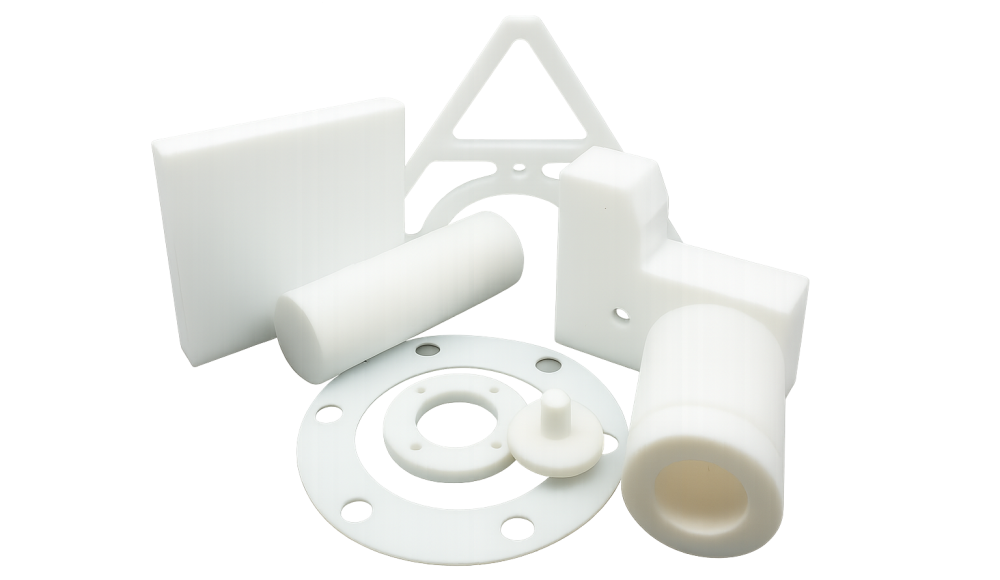

Common Applications of CNC Machined Teflon Parts

Mecanizado CNC is a preferred method for fabricating solid PTFE components used in various industries. Some typical parts include:

Solicitud Ejemplos
válvulas & Guarniciones Pipe seals, lavadoras, flow control parts
Aspectos & Bujes Low-friction wear-resistant components
Aislamiento Aisladores eléctricos, cable spacers
Laboratory Components Chemical-resistant connectors, sample holders
Food-Grade Parts Scraper blades, boquillas, sealing plates
Dispositivos médicos Implantes, biocompatible tubing connectors
Aeroespacial Lightweight gaskets and seals
Semiconductor Inert fluid path components

Machining Tips and Best Practices for Teflon

To achieve the best results when CNC machining PTFE, Considere lo siguiente:

Estampación

Usar carburo o Herramientas HSS with extremely sharp edges

Single-flute or polished flute tools reduce burrs and improve finish

Refrigerante y lubricación

Aplicar non-aromatic, water-soluble coolants

Spray mists or compressed air work well for chip removal and heat management

Velocidades y alimentos

Use moderate cutting speeds and high feed rates to prevent material melting

Avoid excessive tool pressure or heat buildup

Deburring and Finishing

Use sanding, cryogenic freezing, or chemical deburring to remove soft burrs

Freezing the part before finishing can reduce softness and deformation

Design Considerations

Plan for looser tolerances (~±0.13 mm) unless the part is stress-relieved

Avoid thin walls or delicate geometries prone to warping

Alternative Materials to Teflon

For projects where Teflon’s limitations are unacceptable, the following alternatives offer similar benefits with improved strength or processability:

Material Key Advantage Common Brand
PFA (Perfluoroalkoxy) Better non-stick, Más flexible Teflon PFA
PCTFE (Polychlorotrifluoroethylene) Lowest water vapor transmission Kel-F
ECTFE (Ethylene Chlorotrifluoroethylene) Excelente resistencia a la corrosión Halar

Each of these materials can be CNC machined but may have different tooling and handling requirements.

Conclusión: Precision PTFE Machining Services from Experts

teflón (PTFE) is a go-to material for demanding environments requiring chemical resistance, estabilidad térmica, y baja fricción. Sin embargo, its softness and dimensional instability mean that precision PTFE machining requires a careful approach and experienced operators.

If you’re looking to prototype or mass-produce custom Teflon components, partner with a manufacturer familiar with engineering plastics. En Tapas de precisión, we offer advanced PTFE CNC machining with expert support—from design assistance to final quality inspection.

Contact our team today to get a free quote or learn how we can help with your next project.
