Plastic fabrication turns plastic stock, sheet, or resin into finished parts. Methods range from CNC machining and laser cutting to thermoforming, extrusion, welding, 3D printing, and molding. This guide compares the methods, materials, applications, and selection criteria.
What Is Plastic Fabrication?
Plastic fabrication is the process of shaping, cutting, joining, or forming plastic into a finished component.
Process choice depends on quantity, geometry, tolerance, material, and surface finish. Some methods remove material. Others form, join, or mold it. The right method balances cost, lead time, and part performance.
Thermoplastics Vs Thermosets
Plastics fall into two main classes, and the class limits which fabrication methods work.
Thermoplastics soften when heated and can be remelted. Common examples include ABS, polycarbonate, POM, nylon, PEEK, PP, and PE. They can often be machined, welded, and thermoformed.
Thermosets cure permanently and do not remelt. Examples include epoxy, phenolic, polyurethane, and silicone. They are usually joined with adhesives rather than welded. Machining is possible, but cured thermosets are often more brittle than thermoplastics.

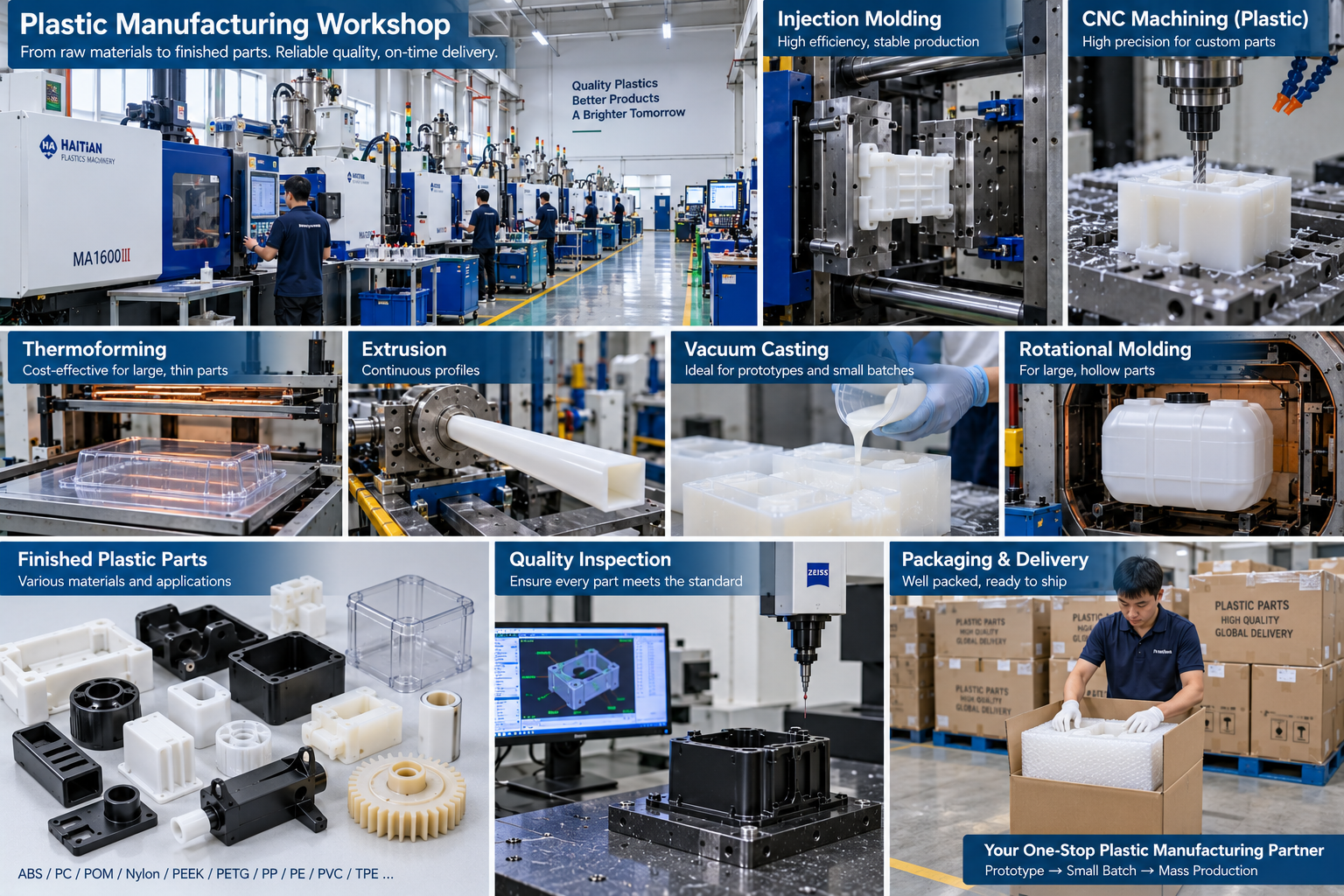

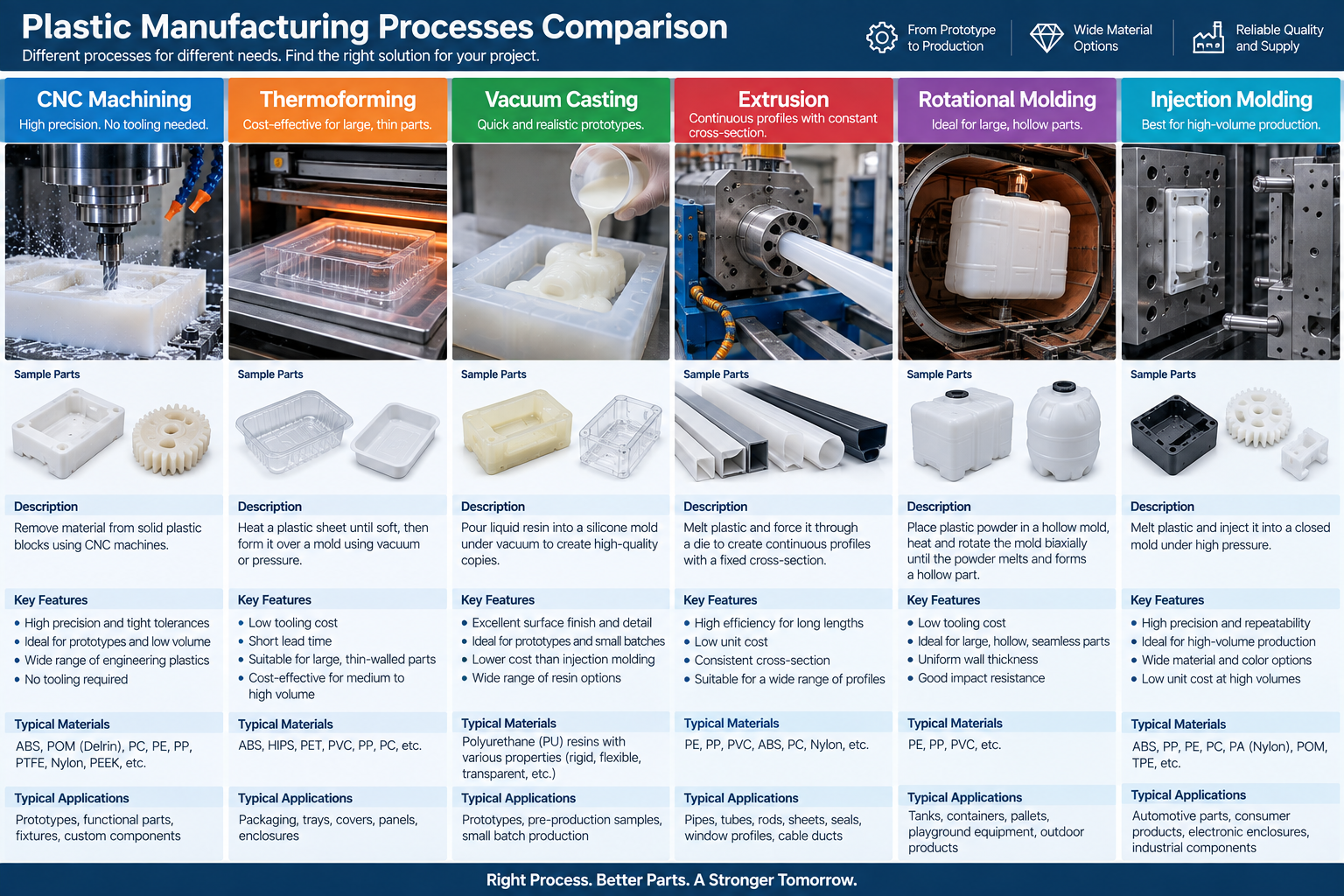

Plastic Fabrication Methods
These method families cover most plastic parts.
| Method | Best For | Tooling | Typical Volume |
| CNC machining | Precision parts, prototypes | Fixtures only | 1 to thousands |
| Laser and waterjet | Flat sheet parts | None | 1 to thousands |
| Thermoforming | Large thin-wall shells | Form tool | Tens to thousands |
| Vacuum casting | Low-volume replicas | Silicone mold | Tens to hundreds |
| Extrusion | Continuous profiles | Extrusion die | Hundreds to very high volume |
| Rotational molding | Large hollow parts | Mold | Tens to thousands |
| 3D printing | Complex prototypes and low volume | None | 1 to hundreds |
| Injection molding | High-volume complex parts | Mold | Thousands to millions |
| Blow molding | Hollow bottles and tanks | Mold | Thousands to millions |
| Welding and joining | Fabricated assemblies | Fixtures | 1 to thousands |

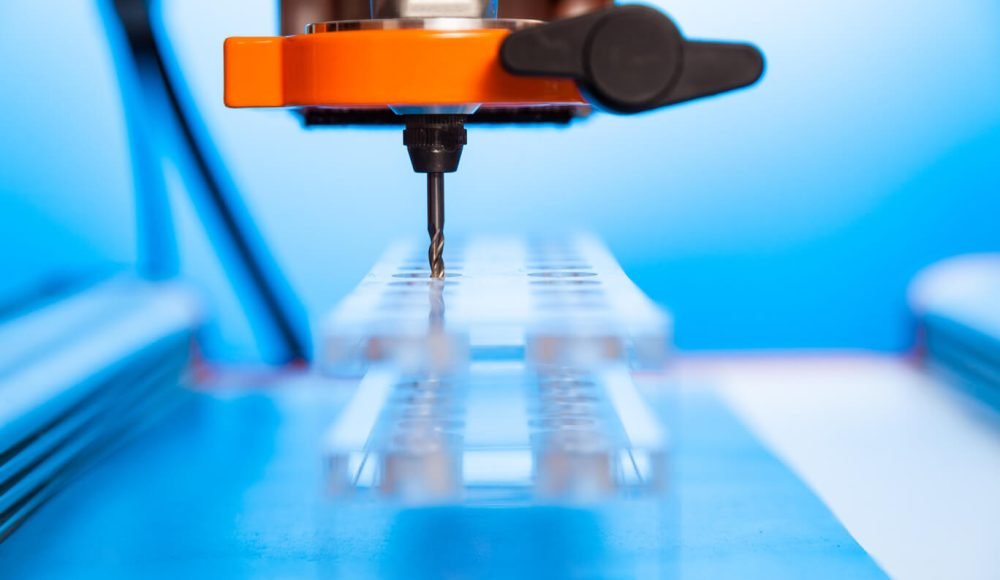

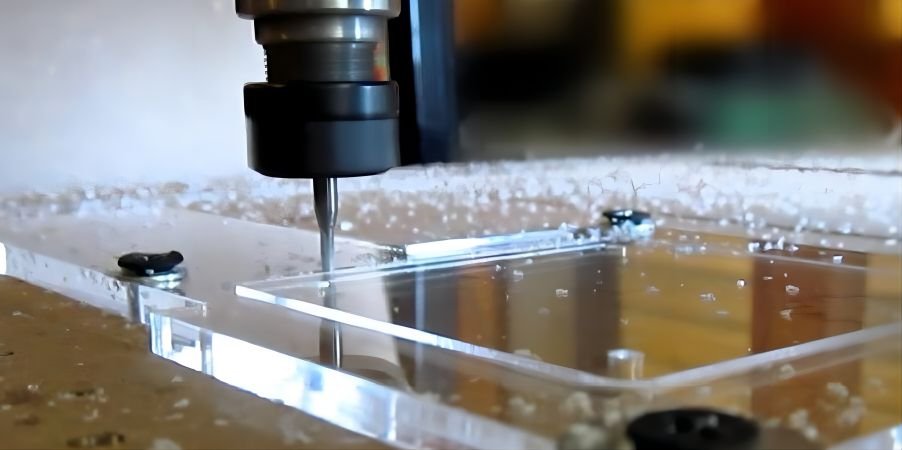

CNC Machining Plastics
CNC machining cuts plastic from solid stock, sheet, or extruded shapes.
It gives good dimensional accuracy and suits prototypes, fixtures, and low-to-medium volume parts. Common operations include milling, turning, drilling, and routing. Plastics machine differently from metals. Heat, chip evacuation, and stress cracking must be managed.
For tight-tolerance plastic parts, stock condition, residual stress, moisture absorption, thermal expansion, and machining heat can affect final dimensions. Annealing or staged machining may be required for some engineering plastics. See our plastic CNC machining guide.
Laser Cutting And Waterjet Cutting
Laser and waterjet cut flat plastic sheet without hard tooling.
Laser cutting can be fast and produce clean edges on compatible plastic sheets, but edge quality, fumes, melting, discoloration, and fire risk depend strongly on the polymer. PVC releases corrosive and hazardous fumes and should not be laser cut.
Waterjet cutting avoids heat, so it suits thicker sections and heat-sensitive materials. It also avoids a heat-affected edge, but abrasive waterjet can leave a textured cut surface and may require edge finishing.
Thermoforming And Vacuum Forming
Thermoforming heats a plastic sheet and forms it over or into a mold.
Vacuum forming is a common type. Tooling costs less than injection molding, which suits large covers, trays, and enclosures. Because the sheet stretches during forming, wall thickness is not uniform in all areas. Deep draws and sharp geometry increase thinning risk, so draft, radii, and trim allowance must be planned.

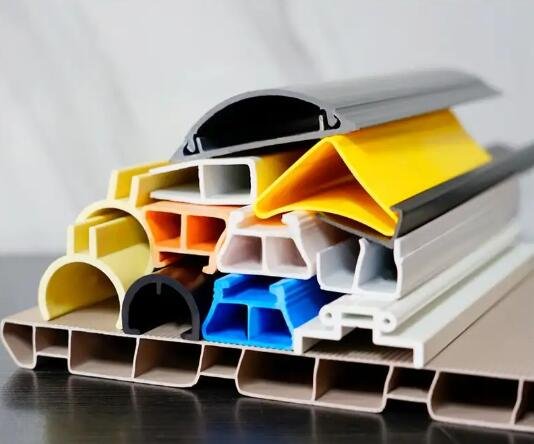

Plastic Extrusion
Extrusion pushes melted plastic through a die to create a continuous profile.
It suits tubes, channels, sheet, and continuous cross-sections in materials such as PVC, PP, PE, ABS, and PC. The die sets the cross-section, so design changes need a new die. Extruded profiles are cut to length and often need secondary machining, drilling, or joining.

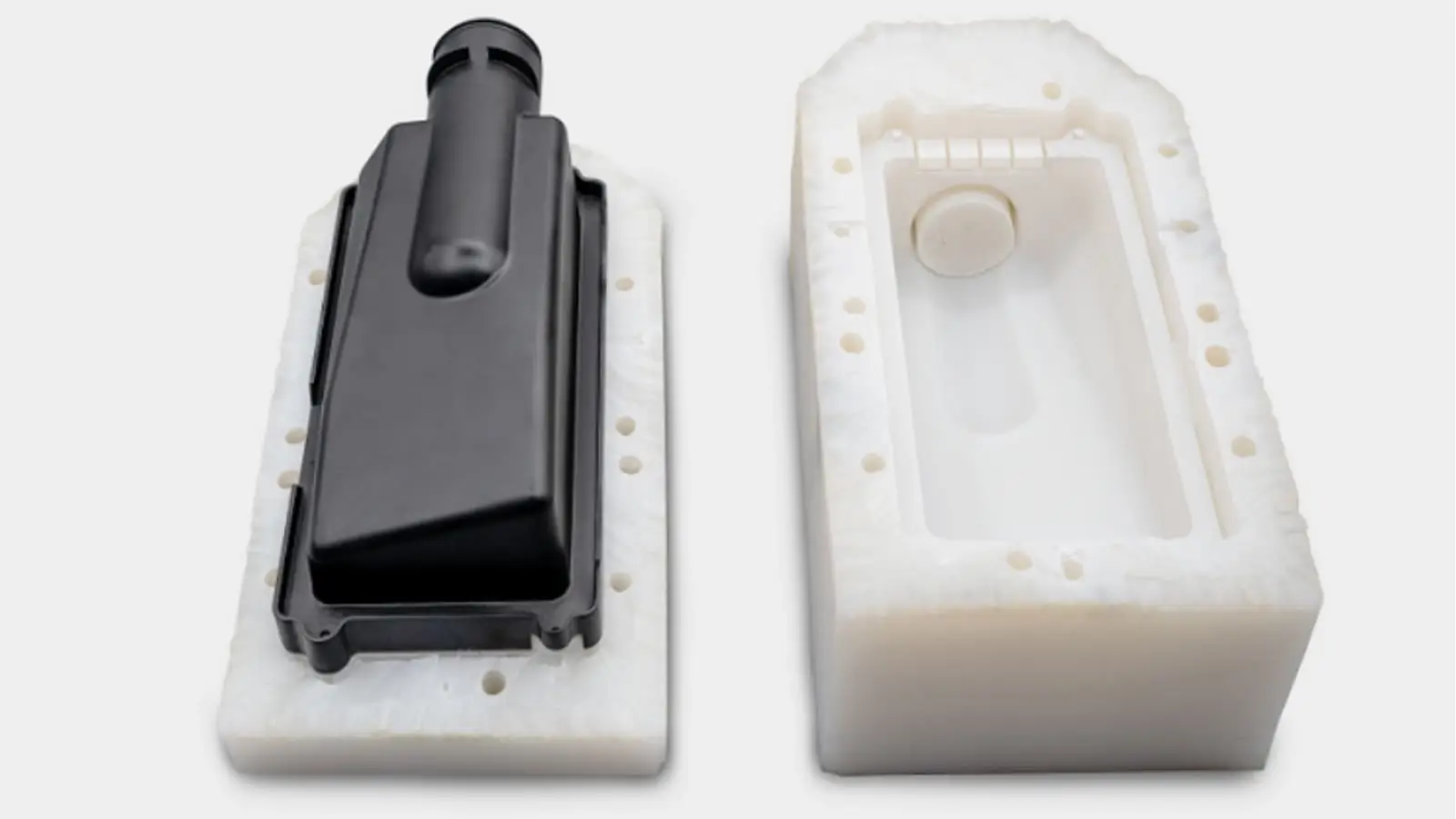

Vacuum Casting
Vacuum casting pours resin into a silicone mold made from a master pattern.
It suits low-volume prototypes, polyurethane replicas, appearance models, and bridge production of roughly tens to hundreds of parts. Silicone molds cost far less than a production mold. The trade-off is limited mold life and resin properties that may differ from the final production material.
Rotational Molding
Rotational molding heats powder inside a rotating hollow mold.
It suits large hollow parts such as tanks, bins, housings, and kayaks. Tooling cost is low compared with injection molding, which makes it useful at low-to-medium volume. Cycle times are long, wall thickness is hard to control precisely, and fine detail is limited.

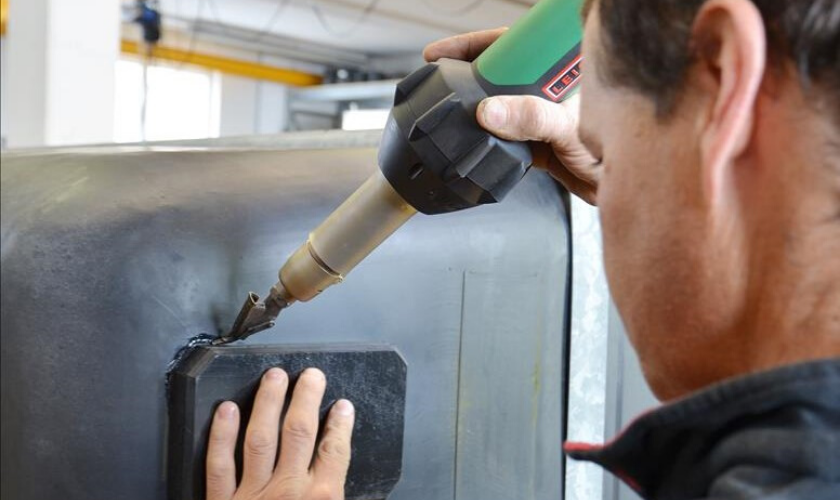

Plastic Welding And Joining
Welding and joining build larger parts or assemblies from smaller pieces.
Common methods include hot-gas welding, ultrasonic welding, solvent bonding, and adhesives. Not all plastics can be welded or solvent bonded. Polymer chemistry, filler content, surface energy, joint design, and cleanliness determine whether a joining method will work reliably. See our guide to joining plastics.
3D Printing Plastics
3D printing builds plastic parts layer by layer.
FDM, SLA, SLS, and MJF cover prototypes, complex geometry, and low volumes. Some processes, such as SLS, MJF, and engineering FDM, can also produce functional end-use components. For tighter tolerances, specific material properties, or higher production volumes, CNC machining or molding may be more suitable.

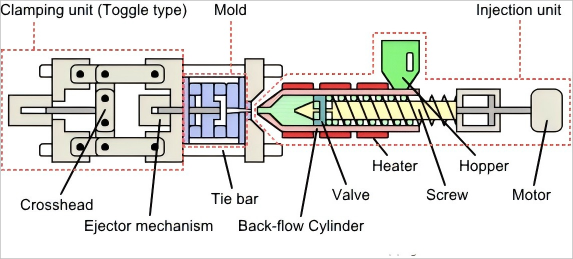

Injection Molding
Injection molding injects melted plastic into a mold cavity.
It can produce complex, repeatable parts with good dimensional control when the part, material, tooling, and process are designed appropriately. Resin shrinkage, tool design, part size, wall thickness, and process control all affect final tolerance. Mold cost is high, so volume must justify it. See our injection molding service.

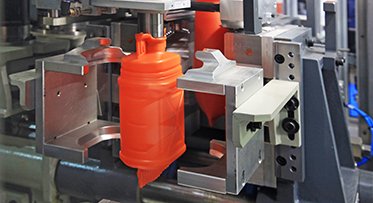

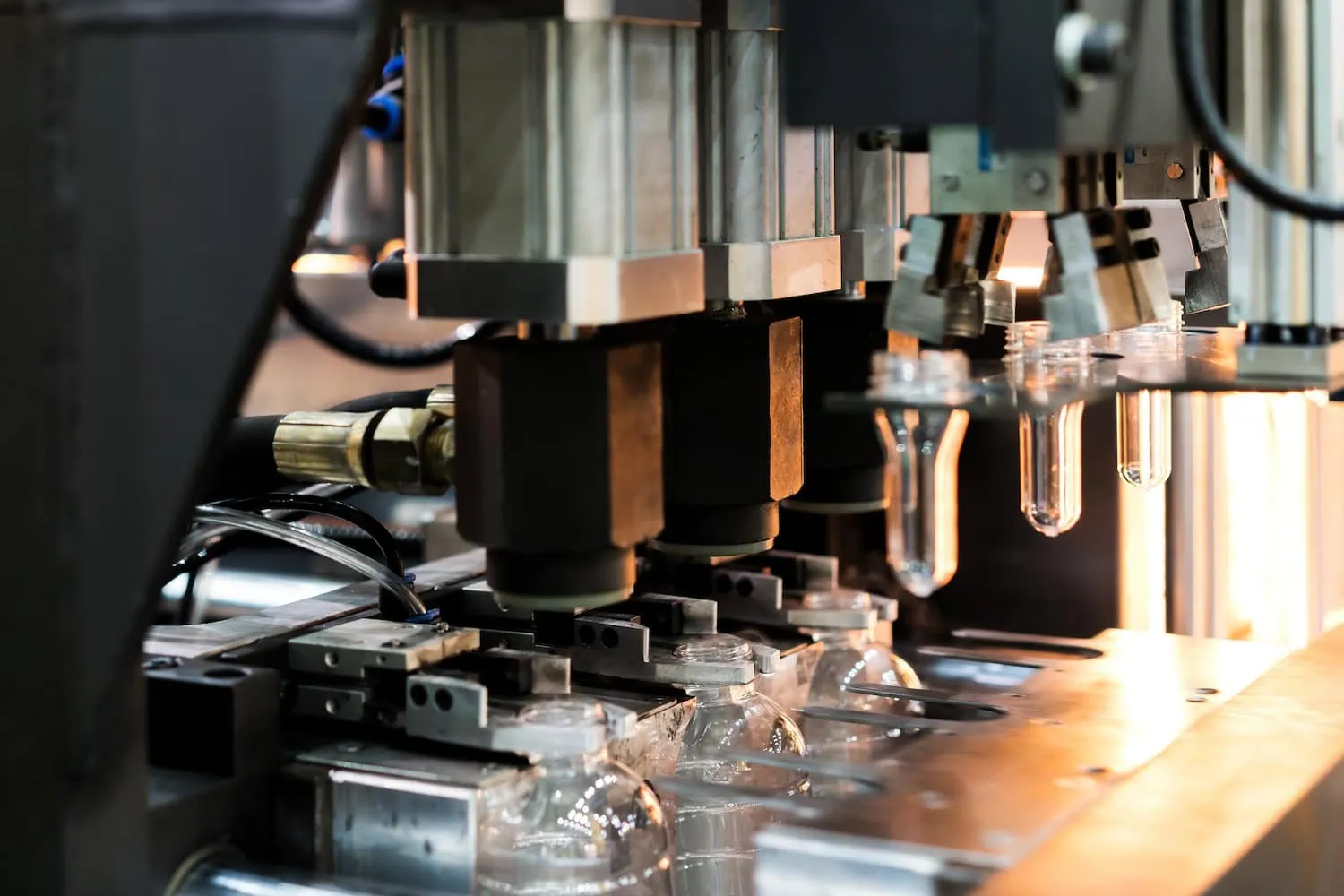

Blow Molding
Blow molding inflates a heated plastic parison or preform inside a mold.
It makes hollow parts such as bottles, containers, and tanks. Extrusion blow, injection blow, and stretch blow molding cover different shapes and volumes. Wall thickness distribution is the main design challenge.

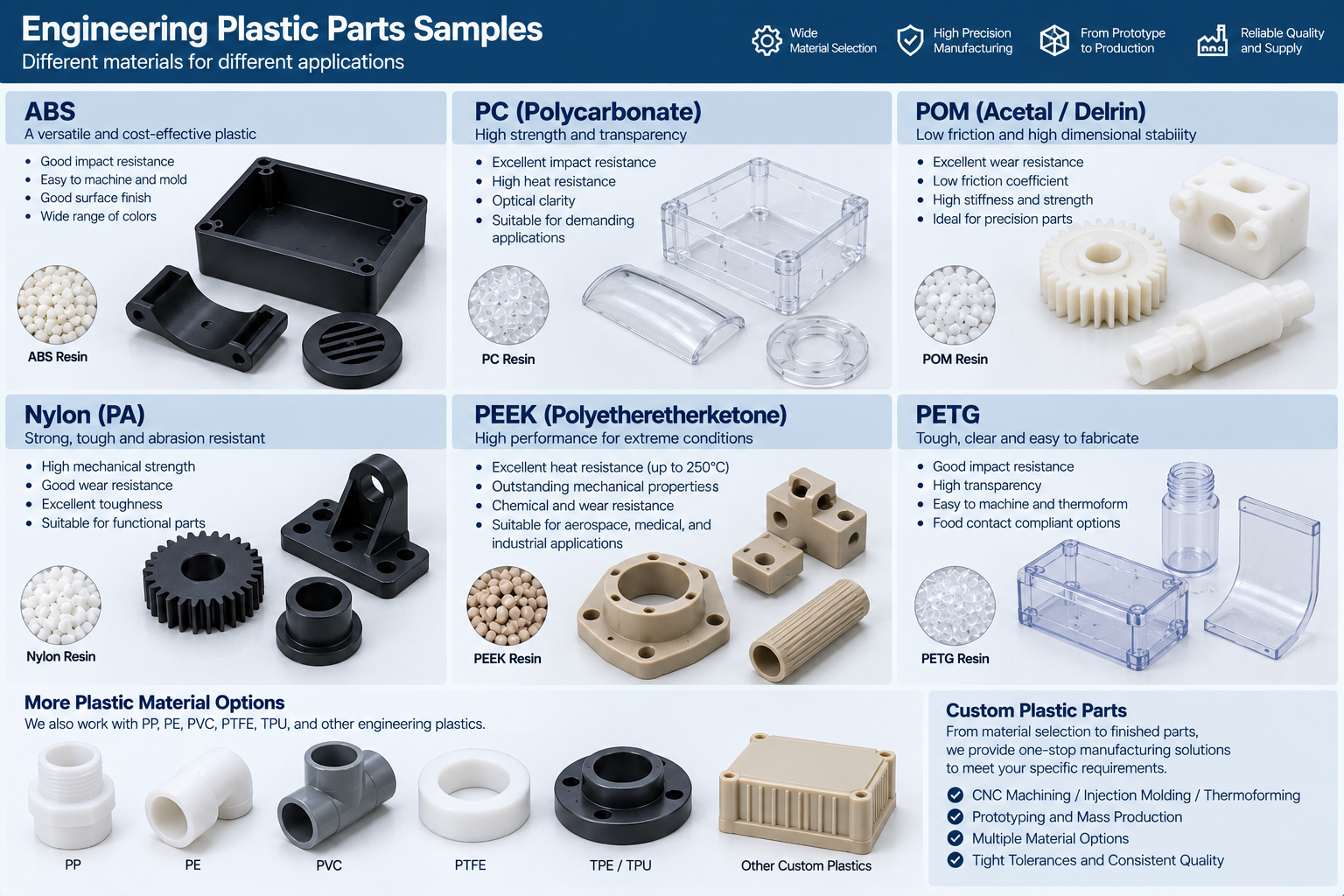

Materials For Plastic Fabrication
Material choice decides strength, temperature, chemical resistance, and cost.
| Material | Key Properties | Typical Use |
| ABS | Tough, low cost, easy to machine | Housings, prototypes |
| Acrylic (PMMA) | Clear, rigid, polishes well | Covers, displays |
| Polycarbonate (PC) | Tough, transparent | Guards, impact parts |
| POM / Delrin | Stiff, low friction, stable | Gears, bushings |
| Nylon (PA) | Strong, wear-resistant, absorbs moisture | Wear parts |
| PEEK | High-performance mechanical, electrical, and aerospace use, with selected medical grades | High-temperature parts |
| PTFE | Low friction, chemical resistance | Seals, insulators |
| HDPE / UHMW-PE | Low friction, chemical-resistant | Liners, wear strips |
| PP | Chemical-resistant, tough | Tanks, hinges |
| PET / PETG | Clear, thermoformable sheet | Packaging, covers |
| PVC | Chemical-resistant, low cost | Piping, panels |
| PPS and PEI | High heat and strength | Electrical, aerospace |
Environmental stress cracking, moisture uptake, and thermal expansion affect performance. Test the material in the real environment when possible.
Applications By Industry
| Industry | Typical Parts | Common Methods |
| Electronics | Enclosures, insulators, light guides | CNC, laser cutting, molding |
| Medical | Housings, fluidic parts, device components | CNC, molding |
| Industrial equipment | Guards, fixtures, wear parts | CNC, thermoforming |
| Food processing | Trays, covers, guides | Thermoforming, CNC |
| Automotive | Interior panels, ducts, prototypes | Thermoforming, molding |
| Chemical processing | Tanks, liners, piping | Welding, machining |
For medical and food-contact parts, material grade, traceability, cleaning, biocompatibility or food-contact requirements, and applicable regulatory standards must be evaluated separately.
How To Select A Plastic Fabrication Method
Choose the method by quantity, geometry, tolerance, material, and finish.
Prototypes and low volume usually favor CNC machining, cutting, or 3D printing. The break-even point depends on geometry, material, tooling cost, cycle time, tolerance, and finishing. Higher volume favors thermoforming, extrusion, or molding.
| Requirement | Likely Method |
| One-off precision part | CNC machining |
| Flat sheet parts | Laser or waterjet cutting |
| Large cover or tray | Thermoforming |
| Continuous profile | Extrusion |
| Large hollow low-to-medium volume part | Rotational molding |
| 10 to 100 appearance prototypes | Vacuum casting |
| Complex prototype | 3D printing |
| Joined assembly | Welding or bonding |
| High-volume complex part | Injection molding |
| Hollow high-volume part | Blow molding |
See CNC machining vs injection molding when volume is the deciding factor.
DFM Considerations By Process
Design rules differ by process, so apply the right set.
- CNC machining: avoid unnecessarily thin walls, plan tool access and fixturing, and account for plastic movement and heat.
- Molding: use consistent walls, draft, radii, and rib or boss design, and allow for shrinkage.
- Thermoforming: plan draft, draw depth, wall thinning, and trim allowance.
- Welding and bonding: design joint geometry, overlap, and surface preparation for the chosen method.
- Sheet cutting: avoid sharp internal corners that start cracks.
Account for moisture absorption in hygroscopic materials such as nylon. Consider stress-relief or annealing where dimensional stability or machining-induced stress is critical for suitable engineering plastics. See our guide to plastic part design for manufacturability.
Cost Factors
Plastic fabrication cost depends on method, material, size, tolerance, finish, and quantity.
- Tooling: molding, rotational molding, and thermoforming need molds or form tools.
- Machine time: CNC and cutting time scale with features.
- Material and material utilization: scrap rate affects cost.
- Setup: fixtures and programming add cost at low volume.
- Finishing and secondary machining: polishing, bonding, and post-molding machining add operations.
- Assembly and packaging: extra steps add cost.
- Inspection: tight tolerances need more measurement.
For low-volume work, machining and cutting often reduce or eliminate dedicated hard-tooling cost, although fixtures, programming, and setup still contribute to cost. At very high volumes, molding, extrusion, or other dedicated production processes may provide lower unit cost.
When Plastic May Not Be The Best Material
Plastic is not always the right material or method.
- High-temperature or high-load parts may need metal.
- At very high volumes, molding, extrusion, or other dedicated production processes may provide lower unit cost than CNC machining or 3D printing.
- Some plastics are hard to bond or weld reliably.
- Tight tolerances in soft plastics are difficult to hold.
- Chemical exposure can rule out otherwise suitable plastics.
If the part must be metal, compare materials before choosing a process.
Frequently Asked Questions
What is plastic fabrication?
It is the process of cutting, forming, joining, or molding plastic into finished parts.
Which plastic fabrication method should I choose?
Choose based on geometry, material, quantity, tolerance, finish, tooling budget, and lead time. CNC suits precision low-volume parts. Thermoforming suits large thin-wall shells. Extrusion suits continuous profiles. Injection molding suits high-volume complex parts.
Is CNC machining good for plastic parts?
Yes. It suits prototypes and low-to-medium volume with good dimensional accuracy.
What plastic is best for machining?
POM / Delrin is one of the easiest engineering plastics to machine dimensionally. The best material depends on strength, temperature, friction, chemical resistance, transparency, and cost.
Can laser cutters cut all plastics?
No. PVC should not be laser cut because it releases corrosive and hazardous fumes.
When should I choose injection molding?
When volume is high enough to justify mold cost and repeatable, complex parts are needed.
What is the difference between thermoplastics and thermosets?
Thermoplastics can be remelted and are often weldable. Thermosets cure permanently and are usually joined with adhesives.
