Whether producing passenger car tires, truck tires, off-road tires, or high-performance racing tires, selecting the correct tire mold technology is essential for achieving product consistency, production efficiency, and long-term durability.
As the global automotive industry continues evolving toward electric vehicles, autonomous driving, and sustainable transportation, tire manufacturers are demanding more advanced mold solutions with higher precision, faster production cycles, and improved surface quality.
In this comprehensive guide, we will explore the major types of tire molds, their manufacturing technologies, materials, advantages, disadvantages, and applications across different tire categories. This article is designed for tire manufacturers, mold makers, automotive suppliers, and procurement teams looking for professional tire mold solutions.
What Are Tire Molds?
Tire molds are precision tooling systems used during the tire vulcanization process to shape green tires into finished products. During curing, the mold applies heat and pressure to form the final tire structure, tread pattern, sidewall markings, and branding details.
A standard tire mold generally consists of:
Tread ring segments
Sidewall plates
Mold core systems
Venting channels
Heating and cooling systems
The mold determines several important tire characteristics, including:
Tread pattern accuracy
Tire balance and uniformity
Rolling resistance
Traction performance
Noise reduction
Sidewall appearance
High-quality tire molds help manufacturers improve production efficiency while reducing defects such as trapped air, flash formation, and uneven curing.
Main Types of Tire Molds

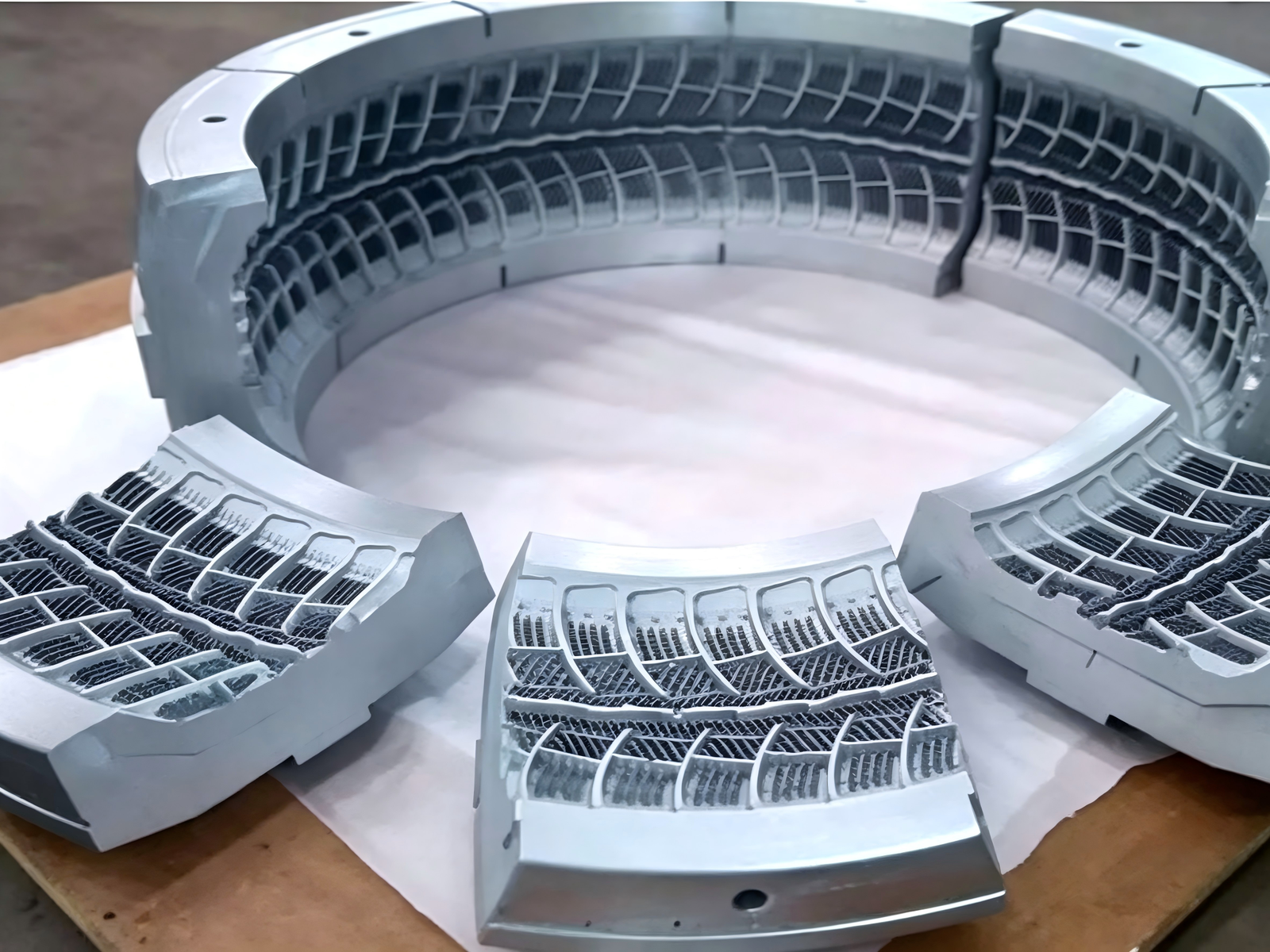

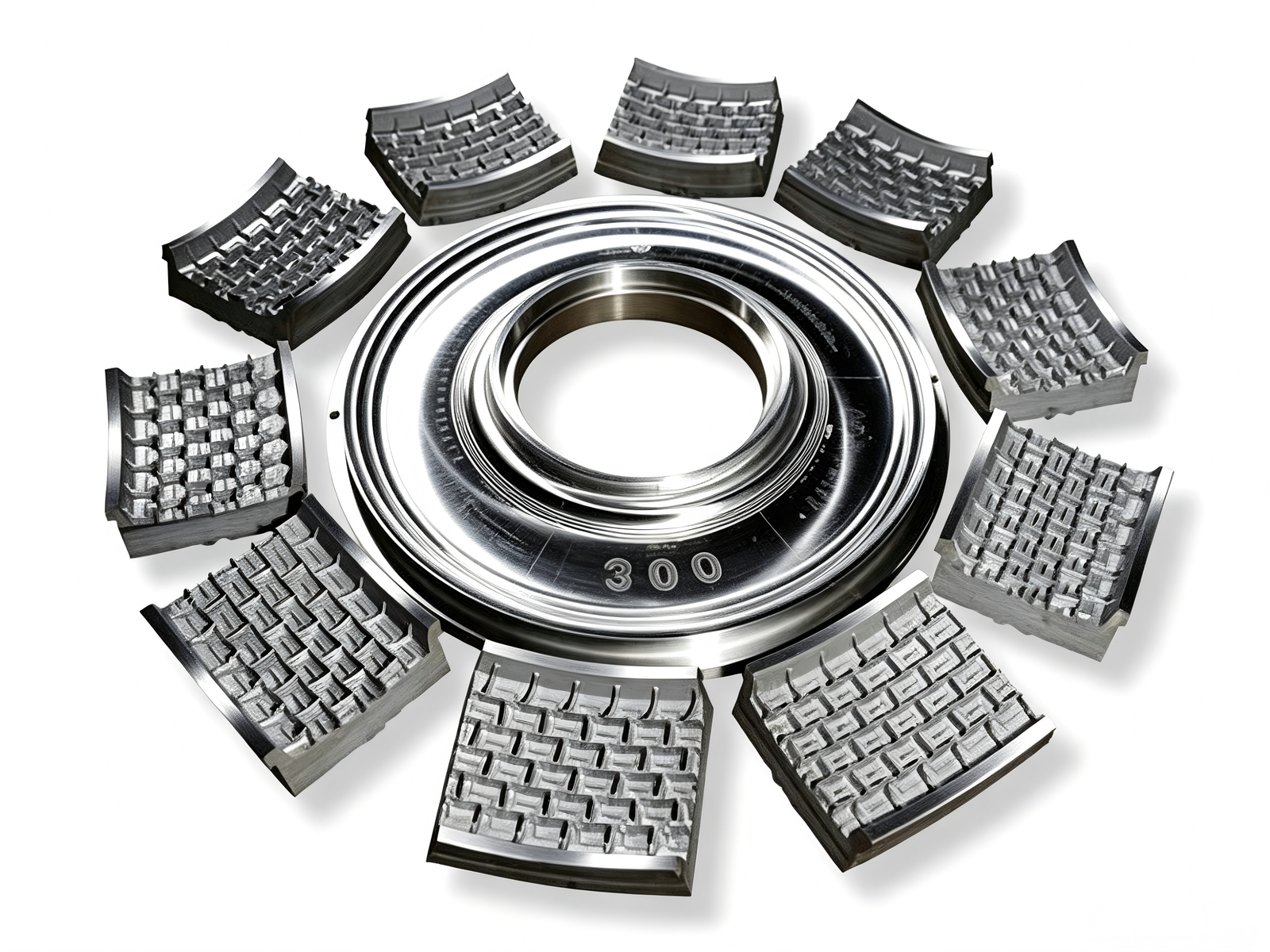

Segmented Molds
Segmented molds are among the most widely used tire mold types in modern tire manufacturing. The mold is divided into multiple movable segments that open and close during the curing process.
Key Features
Typically consists of 6–12 segments
Allows easy tire release after curing
Supports highly complex tread patterns
Provides excellent dimensional precision
Advantages
Ideal for intricate tread designs
Reduced tire deformation during demolding
Better consistency for high-volume production
Suitable for automated production lines
Limitations
Higher manufacturing cost
More complex maintenance requirements
Applications
Segmented molds are commonly used for:
Passenger car radial tires
EV tires
Ultra-high-performance tires
SUV tires
As electric vehicle tires require low rolling resistance and precise tread geometries, segmented molds have become increasingly important in EV tire production.

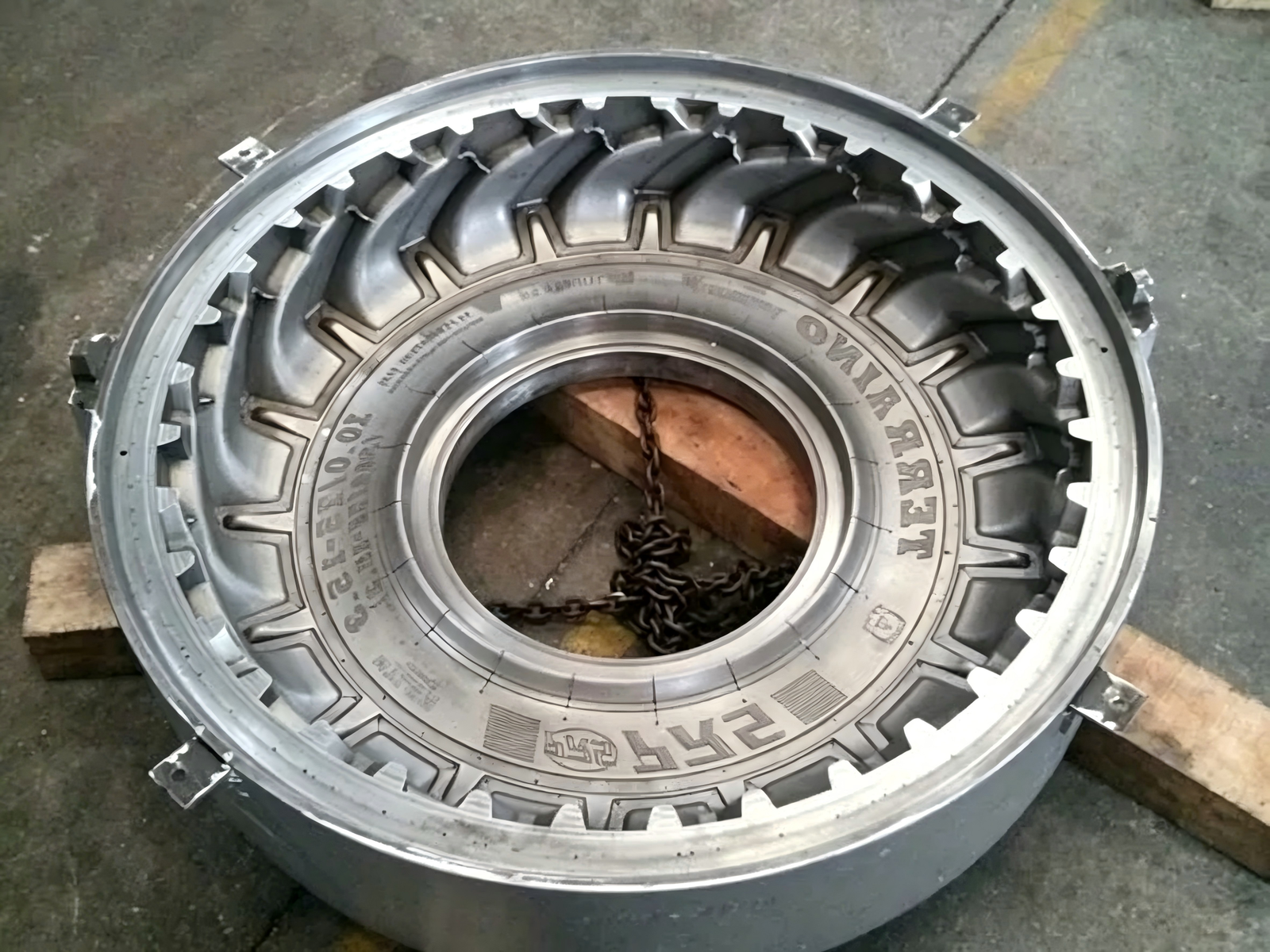

Two-Piece Molds
Two-piece molds are traditional tire molds consisting of upper and lower mold halves separated by a single parting line.
Key Features
Simple structural design
Lower manufacturing cost
Easier maintenance compared to segmented molds
Advantages
Cost-effective
Durable construction
Simple operation and maintenance
Limitations
Limited capability for highly complex tread patterns
Higher risk of flash at parting lines
Applications
These molds are commonly used for:
Agricultural tires
Basic industrial tires
Off-road tires
Small production runs
Two-piece molds remain popular for manufacturers requiring economical tooling solutions.
Puzzle Molds
Puzzle molds are advanced tire molds designed with micro-gap venting technology instead of traditional vent holes.
Key Features
Air escapes through microscopic gaps between segments
Produces cleaner tire surfaces
Reduces trapped air defects
Advantages
Improved tire appearance
Better tread surface quality
Reduced rubber vent spew
Enhanced curing consistency
Limitations
High manufacturing complexity
Expensive production costs
Difficult maintenance
Applications
Puzzle molds are widely used for:
Premium passenger tires
Sports car tires
Luxury vehicle tires
High-speed performance tires
They are especially valuable when appearance quality and tread precision are critical.
Wave Parting Molds
Wave parting molds use specially designed wave-shaped parting lines between mold segments.
Key Features
Advanced wave geometry
Reduced visible mold lines
Improved tread continuity
Advantages
Superior tread pattern transfer
Reduced flash formation
Enhanced tire aesthetics
Better pattern stability
Manufacturing Technology
These molds typically require:
5-axis CNC machining
Advanced CAD/CAM programming
High-precision surface finishing
Applications
Wave parting molds are commonly used for:
Racing tires
Aircraft tires
High-performance tires
Premium EV tires
Steel Engraved Molds
Steel engraved molds are manufactured from hardened steel using CNC engraving technologies.
Key Features
Excellent wear resistance
High structural stability
Long service life
Advantages
Outstanding durability
High precision
Excellent resistance to thermal deformation
Suitable for large production volumes
Limitations
Heavier than aluminum molds
Longer machining time
Applications
Steel engraved molds are ideal for:
Truck tires
Bus tires
Heavy-duty industrial tires
Mining tires
Many heavy-load tire manufacturers prefer steel molds because of their extended operational lifespan.
Aluminum Cast Molds
Aluminum cast molds are lightweight molds manufactured using high-conductivity aluminum alloys.
Key Features
Excellent heat transfer
Lightweight construction
Faster curing cycles
Advantages
Reduced production cycle times
Easier handling
Lower energy consumption
Better thermal conductivity
Limitations
Lower wear resistance compared to steel
More susceptible to deformation
Applications
Aluminum molds are commonly used for:
Passenger tires
Motorcycle tires
Bicycle tires
High-volume production lines
Their lightweight properties help improve operational efficiency in mass production environments.
Retread Molds
Retread molds are designed for tire retreading operations, where worn tires receive new tread rubber.
Two Main Retreading Methods
Mold Cure Retreading
Uncured rubber is directly applied to the tire casing
Tire is cured inside the mold
Pre-Cure Retreading
Pre-vulcanized tread strips are bonded to the casing
Lower curing temperatures required
Advantages
Lower tire replacement cost
Extended tire service life
Environmentally friendly solution
Applications
Retread molds are commonly used for:
Commercial trucks
Buses
Off-road vehicles
Fleet management operations
Retreading has become increasingly important in sustainable transportation industries.
Tire Mold Applications by Tire Type
Passenger Car Tires
Passenger car tires require:
High tread precision
Low rolling resistance
Reduced noise levels
Comfortable driving performance
Common mold types:
Segmented molds
Puzzle molds
Aluminum cast molds
Truck and Bus Tires
Truck and bus tires demand:
High load capacity
Long tread life
Excellent heat resistance
Common mold types:
Steel engraved molds
Segmented molds
Off-The-Road (OTR) Tires
OTR tires are used in mining, construction, and agricultural machinery.
Requirements include:
Extreme durability
Deep tread patterns
Large tire dimensions
Common mold types:
Large segmented molds
Steel molds
Aluminum cast molds
Specialty Tires
Specialty tires include:
Racing tires
Aircraft tires
Military tires
Industrial specialty tires
These applications require extremely high precision and specialized tread structures.
Common mold types:
Wave parting molds
Puzzle molds
Steel engraved molds
Materials Used in Tire Mold Manufacturing
Steel
Steel offers:
High durability
Excellent wear resistance
Long mold life
However, steel molds are heavier and require longer machining times.
Aluminum Alloys
Aluminum provides:
Faster heat transfer
Reduced production cycle time
Lightweight handling
But aluminum molds typically have shorter service lives.
Specialized Alloys
Advanced mold manufacturers may use hybrid alloy systems for:
Improved thermal conductivity
Corrosion resistance
Enhanced dimensional stability
Tire Mold Manufacturing Technologies
Modern tire mold production relies heavily on advanced manufacturing technologies.
CNC Machining
CNC machining enables:
Precise tread engraving
Consistent dimensional accuracy
Complex geometries
5-Axis Machining
5-axis CNC machines allow:
Multi-angle machining
High precision pattern generation
Reduced setup times
CAD/CAM Systems
CAD/CAM technologies help optimize:
Tread design
Vent placement
Mold cooling channels
Production efficiency
Laser Engraving
Laser systems improve:
Sidewall lettering precision
Fine tread detail creation
Surface finishing quality
Tire Mold Maintenance and Lifespan
Proper maintenance is essential for extending mold life and maintaining tire quality.
Recommended Maintenance Practices
Regular cleaning after production cycles
Inspection of vent holes and parting lines
Surface polishing
Corrosion prevention
Dimensional inspections
Cleaning Technologies
Modern manufacturers increasingly use:
Laser cleaning
Dry ice cleaning
Ultrasonic cleaning
These methods minimize surface damage compared to traditional abrasive cleaning.
Typical Mold Lifespan
Aluminum molds: 50,000–100,000 cycles
Steel molds: 150,000–300,000 cycles
Proper maintenance can significantly extend operational life.
How to Choose the Right Tire Mold
When selecting a tire mold, manufacturers should consider:
Tire Type
Different tires require different mold technologies.
Production Volume
High-volume production often favors segmented or aluminum molds.
Cost Considerations
Initial mold investment vs. long-term maintenance cost.
Surface Quality Requirements
Premium tires demand higher precision mold systems.
Durability Requirements
Heavy-duty tires require stronger mold materials.
Future Trends in Tire Mold Technology
The tire mold industry is rapidly evolving.
Smart Tire Molds
Integrated sensors for:
Temperature monitoring
Pressure monitoring
Predictive maintenance
Automation
Automated mold handling improves:
Production efficiency
Safety
Consistency
Sustainable Manufacturing
Manufacturers are developing:
Energy-efficient mold systems
Recyclable mold materials
Reduced waste production
EV Tire Mold Innovation
Electric vehicle tires require:
Low-noise tread patterns
High precision curing
Enhanced rolling resistance optimization
This is driving major innovation in mold design technologies.
Conclusion
Tire molds play a vital role in determining tire quality, durability, and manufacturing efficiency. From traditional two-piece molds to advanced puzzle and wave parting molds, each mold type offers unique advantages for specific tire applications.
As tire technology continues advancing, manufacturers increasingly require high-precision, durable, and efficient mold solutions to meet growing market demands. Choosing the right tire mold technology can significantly improve production consistency, tire performance, and operational profitability.
For tire manufacturers looking to improve production quality and reduce long-term costs, investing in advanced tire mold technologies remains a critical competitive advantage.
FAQs
1.What is the most durable tire mold material?
Steel molds are generally the most durable because of their excellent wear resistance and thermal stability.
2.Which tire mold is best for high-performance tires?
Puzzle molds and wave parting molds are commonly used for high-performance and racing tires.
3.How long does a tire mold typically last?
Depending on material and maintenance, tire molds can last from 50,000 to over 300,000 production cycles.
4.Why are segmented molds popular?
Segmented molds provide excellent tread precision, easy demolding, and compatibility with complex tire designs.
5.What manufacturing technologies are used for tire molds?
Modern tire molds are commonly produced using CNC machining, 5-axis machining, CAD/CAM systems, and laser engraving technologies.
