Compared with general-purpose die casting alloys like A380, A413 contains a higher silicon content, allowing molten metal to flow more easily into intricate mold cavities. This makes it particularly suitable for precision parts with thin walls, fine details, and demanding dimensional requirements.
Whether you’re an engineer selecting the right casting material or a purchasing manager sourcing a reliable die casting supplier, understanding the characteristics of A413 aluminum alloy will help you make better manufacturing decisions.
In this guide, you’ll learn everything you need to know about A413 aluminum alloy, including its chemical composition, mechanical properties, manufacturing processes, advantages, limitations, applications, and how it compares with other popular die casting alloys.

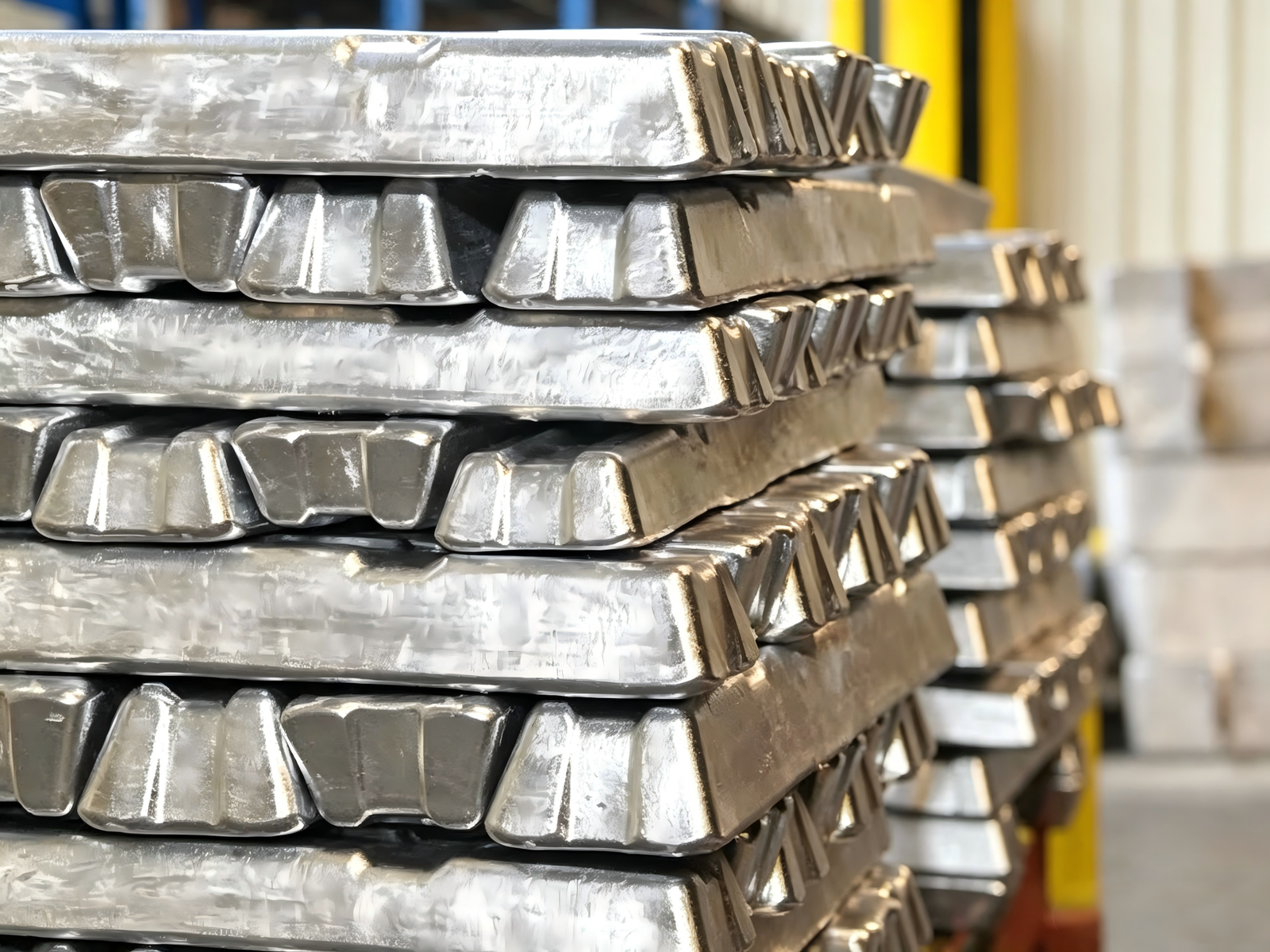

What Is A413 Aluminum Alloy?
A413 aluminum alloy is a high-silicon aluminum casting alloy specifically developed for pressure die casting applications. It belongs to the Aluminum Association (AA) 4xx.x series, where silicon is the primary alloying element.
The alloy is recognized for its excellent mold-filling capability, making it ideal for manufacturing complex geometries that would be difficult to produce using many other aluminum alloys.
Unlike wrought aluminum alloys used for extrusion or machining, A413 is engineered to perform exceptionally well during casting. Its high fluidity allows molten metal to fill thin-wall sections rapidly while minimizing casting defects such as cold shuts, misruns, and shrinkage porosity.
A413 Aluminum Alloy Standards and Specifications
Depending on the country or industry, A413 aluminum alloy may be specified under different standards.
| Standard | Designation |
| Aluminum Association (AA) | A413.0 |
| UNS | A04130 |
| ASTM | ASTM B85 |
| SAE | Commonly referenced in automotive castings |
| ISO | Used in international aluminum casting standards |
Manufacturers often certify A413 castings according to customer specifications in industries such as automotive, electronics, telecommunications, and industrial automation.
Chemical Composition of A413 Aluminum
The excellent casting characteristics of A413 result from its carefully balanced chemical composition.
| Element | Typical Content (%) |
| Silicon (Si) | 11.0 – 13.0 |
| Iron (Fe) | ≤0.80 |
| Copper (Cu) | ≤0.10 |
| Magnesium (Mg) | ≤0.10 |
| Zinc (Zn) | ≤0.10 |
| Manganese (Mn) | ≤0.35 |
| Nickel (Ni) | ≤0.05 |
| Tin (Sn) | ≤0.05 |
| Aluminum (Al) | Balance |
Aluminum (Al)
Aluminum forms the base metal and provides low density, corrosion resistance, and excellent recyclability.
Silicon (Si)
Silicon is the most important alloying element.
Its benefits include:
Excellent casting fluidity
Reduced shrinkage
Improved wear resistance
Better dimensional stability
Lower tendency for hot cracking
The relatively high silicon content is the primary reason A413 performs exceptionally well in die casting.
Iron (Fe)
Iron prevents soldering between molten aluminum and steel dies, improving die life. Excessive iron, however, may reduce ductility.
Copper (Cu)
Copper increases strength but may slightly reduce corrosion resistance if present in high amounts. Therefore, A413 limits copper content.
Magnesium (Mg)
Small amounts of magnesium contribute to mechanical strength while maintaining good castability.
Manganese, Zinc, Nickel, and Titanium
These elements help refine grain structure, improve casting quality, and maintain alloy stability during production.
Physical Properties of A413 Aluminum
Understanding physical properties helps engineers determine whether A413 is suitable for specific operating environments.
| Property | Typical Value |
| Density | 2.66 g/cm³ |
| Melting Range | 570–630°C |
| Thermal Conductivity | 120–150 W/m·K |
| Electrical Conductivity | Approximately 30% IACS |
| Coefficient of Thermal Expansion | 21–23 μm/m·°C |
| Specific Heat | 960 J/kg·K |
| Elastic Modulus | Approximately 71 GPa |
Lightweight Construction
With a density approximately one-third that of steel, A413 significantly reduces product weight without sacrificing structural integrity.
This makes it ideal for lightweight automotive and aerospace designs.
Excellent Thermal Conductivity
A413 efficiently transfers heat away from critical components, making it an excellent choice for:
LED lighting
Electronic housings
Motor housings
Heat sinks
Power electronics
Good Dimensional Stability
Low thermal distortion enables manufacturers to produce highly accurate components with minimal post-machining.
Mechanical Properties of A413 Aluminum
Actual mechanical properties vary depending on casting method, wall thickness, and heat treatment.
Typical values include:
| Property | Typical Value |
| Ultimate Tensile Strength | 220–290 MPa |
| Yield Strength | 110–150 MPa |
| Elongation | 2–5% |
| Brinell Hardness | 75–95 HB |
| Shear Strength | Approximately 170 MPa |
| Fatigue Strength | Approximately 95 MPa |
These properties make A413 suitable for medium-strength structural applications where dimensional precision and casting quality are more important than maximum tensile strength.
Key Characteristics of A413 Aluminum Alloy
Exceptional Castability
One of the biggest reasons manufacturers choose A413 is its industry-leading castability.
Molten A413 flows extremely well into intricate mold cavities, allowing manufacturers to produce:
Thin-wall castings
Complex internal passages
Fine surface details
Tight dimensional tolerances
Near-net-shape components
Excellent castability also reduces machining requirements, lowering production costs.

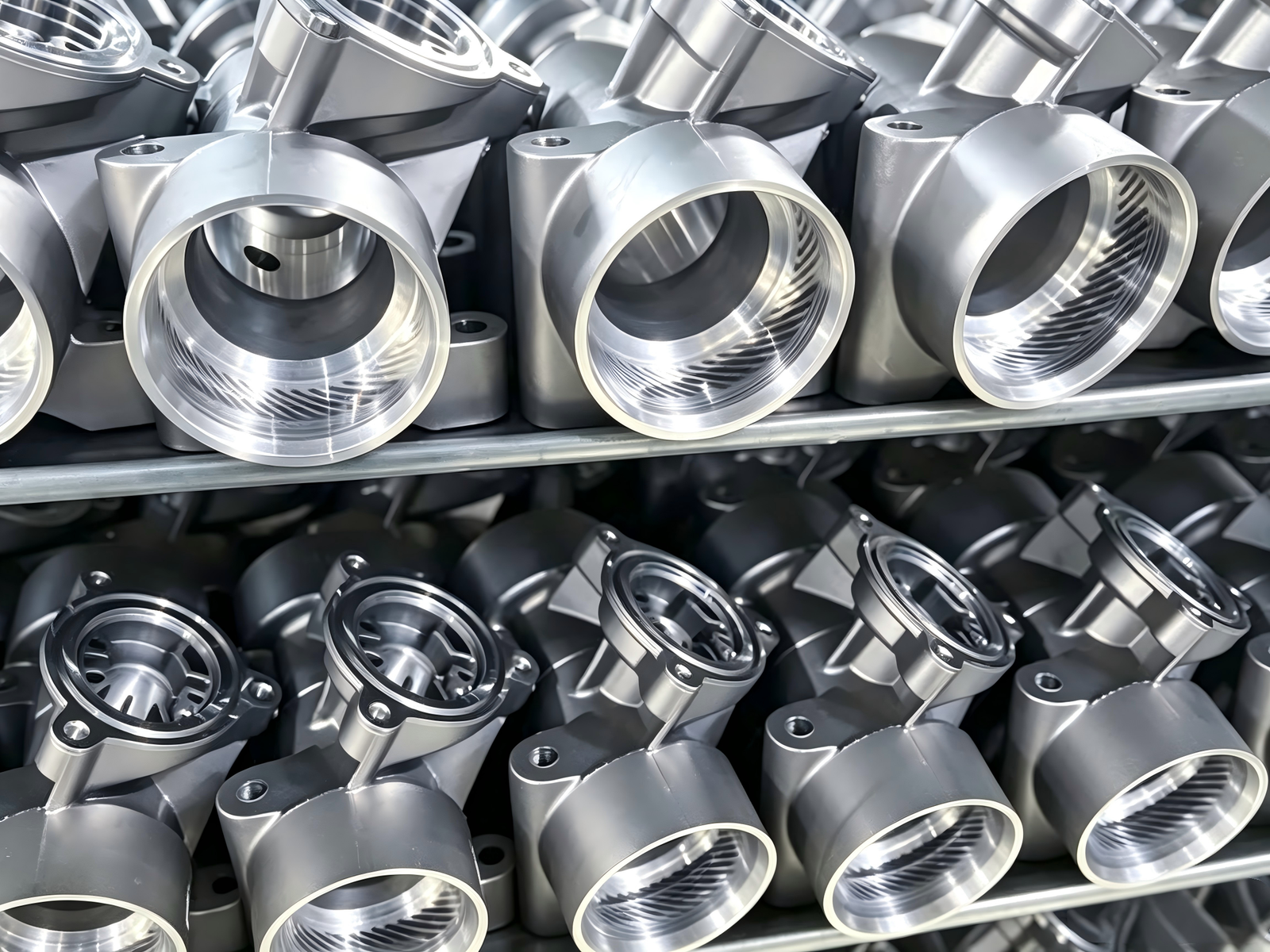

Outstanding Pressure Tightness
A413 exhibits excellent leak resistance, making it ideal for components that must contain gases or liquids.
Typical pressure-tight applications include:
Hydraulic valve bodies
Pump housings
Air compressor parts
Refrigeration components
Fluid control systems
Its ability to produce dense, low-porosity castings minimizes leakage and enhances long-term reliability.
Excellent Corrosion Resistance
A413 naturally forms a protective oxide layer when exposed to air, helping resist corrosion in many environments.
It performs well in:
Outdoor equipment
Industrial machinery
Consumer products
Automotive applications
Moderate marine environments
For harsher conditions, additional surface treatments such as powder coating or chromate conversion can further enhance corrosion protection.
High Thermal Conductivity
Heat management is essential in modern electronic and automotive systems. A413’s thermal conductivity makes it ideal for:
LED heat sinks
Motor housings
Power supply enclosures
Battery cooling components
Electronic control unit (ECU) housings
Efficient heat dissipation helps improve product performance and extend service life.
Lightweight Yet Durable
A413 combines low weight with sufficient mechanical strength for a wide range of applications.
Compared with steel components, aluminum castings can reduce weight by up to 60–70%, contributing to:
Improved fuel efficiency
Lower transportation costs
Easier installation
Reduced energy consumption
Excellent Surface Finish
Due to its superior mold-filling capability, A413 produces smooth casting surfaces with fine detail replication.
This reduces secondary finishing operations and improves the appearance of finished products.

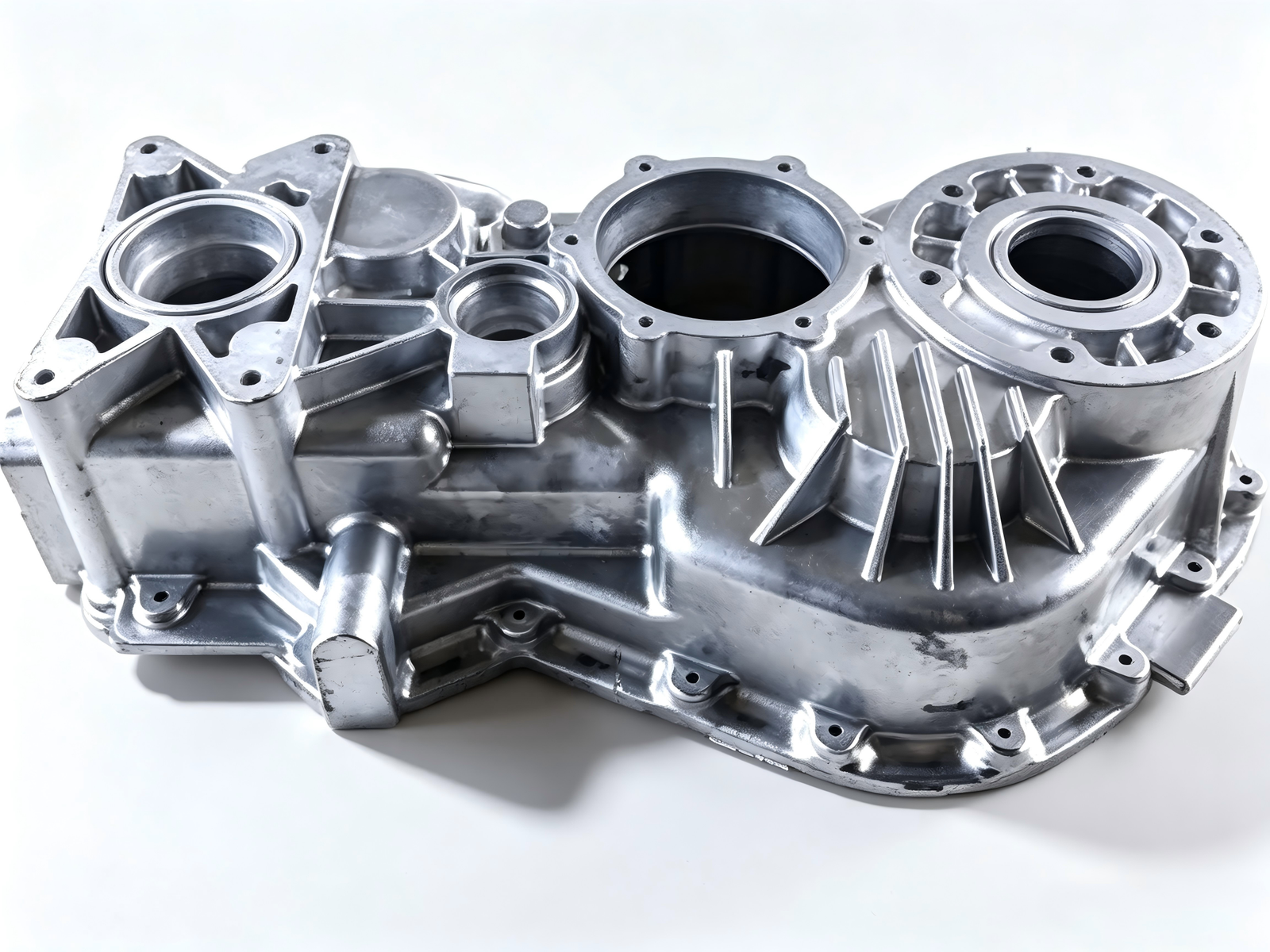

Advantages of A413 Aluminum Alloy
Selecting the right material directly impacts manufacturing efficiency, product performance, and production costs. A413 aluminum alloy offers several advantages that make it a preferred choice for high-volume die casting projects.
1. Superior Castability
A413 is best known for its outstanding casting performance.
Its high silicon content allows molten aluminum to flow smoothly into intricate mold cavities before solidifying, enabling manufacturers to produce parts with:
Thin walls
Deep ribs
Small holes
Complex internal channels
Sharp corners
Fine surface details
Compared to many other aluminum alloys, A413 significantly reduces the likelihood of casting defects such as:
Cold shuts
Misruns
Shrinkage cavities
Air entrapment
Surface imperfections
For manufacturers producing precision die cast parts, this translates into higher yields, less scrap, and lower production costs.
2. Excellent Pressure Tightness
Pressure-tight castings are essential for components that carry air, oil, water, or hydraulic fluids.
Thanks to its excellent fluidity and reduced porosity, A413 is widely used in leak-sensitive applications such as:
Hydraulic valve bodies
Pump housings
Air compressor components
Oil pump covers
Refrigeration compressors
Fluid control systems
When combined with proper die design and vacuum die casting technology, A413 can produce exceptionally dense castings with minimal leakage.
3. Outstanding Corrosion Resistance
Like most aluminum alloys, A413 naturally forms a thin oxide layer that protects it from atmospheric corrosion.
This protective film makes A413 suitable for:
Outdoor equipment
Industrial machinery
Agricultural equipment
Consumer electronics
Automotive components
Additional treatments such as powder coating, anodizing (where applicable), or chromate conversion coating can further improve corrosion resistance in demanding environments.
4. Lightweight Without Sacrificing Performance
Weight reduction has become increasingly important in industries such as automotive, aerospace, and robotics.
Replacing steel with A413 aluminum alloy can reduce component weight by up to 65%, contributing to:
Better fuel economy
Lower carbon emissions
Easier handling
Reduced shipping costs
Improved equipment efficiency
Despite its light weight, A413 still provides sufficient strength for many structural and mechanical applications.
5. Excellent Thermal Conductivity
Heat management is critical in today’s electronics and electric vehicles.
A413 efficiently transfers heat away from sensitive components, making it ideal for:
LED lighting housings
Heat sinks
Power supply enclosures
Electric motor housings
Battery cooling systems
Electronic control units (ECUs)
Good thermal conductivity improves product reliability while extending service life.
6. Cost-Effective for Mass Production
High-pressure die casting is one of the most efficient manufacturing methods for producing large quantities of identical components.
Because A413 casts easily, manufacturers benefit from:
Short cycle times
Longer die life
Reduced machining
High repeatability
Excellent dimensional consistency
These advantages make A413 particularly economical for medium- and high-volume production.
Limitations of A413 Aluminum Alloy
While A413 offers numerous benefits, it is not the ideal solution for every application.
Understanding its limitations helps engineers choose the most appropriate material.
Lower Mechanical Strength Than Some Aluminum Alloys
Although A413 provides adequate strength for many applications, alloys such as A380 or A357 generally offer higher tensile strength.
Applications involving heavy structural loads may require stronger materials.
Limited Heat Treatability
Unlike some cast aluminum alloys, A413 is not commonly selected when extensive heat treatment is required to achieve maximum mechanical properties.
If high strength after heat treatment is essential, other casting alloys may be more suitable.
Not Ideal for Welding
The high silicon content that gives A413 its excellent castability also makes welding more challenging.
Most A413 components are designed as complete castings rather than welded assemblies.
Moderate Wear Resistance
For applications involving continuous metal-to-metal contact, additional surface treatments or wear-resistant inserts may be necessary.
Examples include:
Bearing seats
Sliding mechanisms
High-friction machine components
A413 vs Other Aluminum Die Casting Alloys
Material selection often comes down to comparing multiple aluminum alloys.
Below are the most common comparisons.
A413 vs A380 Aluminum
A380 is considered the industry’s general-purpose die casting alloy, while A413 specializes in complex, pressure-tight castings.
| Property | A413 | A380 |
| Castability | Excellent | Very Good |
| Fluidity | Excellent | Good |
| Pressure Tightness | Excellent | Good |
| Corrosion Resistance | Better | Good |
| Mechanical Strength | Moderate | Higher |
| Thermal Conductivity | Better | Moderate |
| Thin-Wall Casting | Excellent | Very Good |
| Cost | Similar | Similar |
Choose A413 when:
Leak resistance is critical.
Thin-wall parts are required.
Excellent thermal conductivity is important.
Complex geometries must be filled completely.
Choose A380 when:
Higher strength is needed.
General-purpose die casting is sufficient.
Automotive structural components are being produced.
A413 vs ADC12
ADC12 is the Japanese Industrial Standard (JIS) aluminum die casting alloy commonly used throughout Asia.
| Property | A413 | ADC12 |
| Fluidity | Excellent | Very Good |
| Strength | Moderate | Higher |
| Corrosion Resistance | Better | Good |
| Pressure Tightness | Excellent | Good |
| Machinability | Good | Excellent |
| Heat Dissipation | Better | Good |
ADC12 is widely used for automotive components, while A413 is preferred when leak-tightness and heat transfer are priorities.
A413 vs A360
A360 offers superior corrosion resistance and ductility compared with A413.
| Property | A413 | A360 |
| Castability | Excellent | Good |
| Corrosion Resistance | Excellent | Outstanding |
| Strength | Moderate | Higher |
| Cost | Lower | Higher |
| Thin-Wall Casting | Excellent | Good |
A413 vs A383
A383 is often selected when extremely intricate die castings are required.
Compared with A383, A413 offers:
Better pressure tightness
Better corrosion resistance
Better thermal conductivity
A383 generally provides better filling of extremely complicated dies but slightly lower leak resistance.
Manufacturing Processes for A413 Aluminum
Several casting methods can be used depending on production volume and component requirements.
High-Pressure Die Casting (HPDC)
This is by far the most common manufacturing method for A413.
Molten aluminum is injected into hardened steel dies at high speed and pressure.
Advantages
Excellent dimensional accuracy
High production speed
Smooth surface finish
Low production cost for large volumes
Excellent repeatability
Typical industries include:
Automotive
Consumer electronics
Industrial equipment
Home appliances
Vacuum Die Casting
Vacuum-assisted die casting removes trapped air before molten aluminum enters the cavity.
Benefits include:
Reduced porosity
Better pressure tightness
Improved mechanical properties
Better surface finish
Vacuum die casting is commonly used for automotive safety components and electric vehicle parts.
Permanent Mold Casting
Permanent mold casting is suitable for medium production volumes.
Compared with die casting, it offers:
Lower tooling cost
Good mechanical properties
Better flexibility
Gravity Die Casting
Gravity casting relies on gravity instead of injection pressure.
Although slower than HPDC, it is useful for:
Larger components
Lower production quantities
Simpler tooling
CNC Machining of A413 Aluminum
Although die cast parts are often produced near-net shape, secondary machining is frequently required.
Common machining operations include:
Drilling
Reaming
Tapping
Thread milling
Typical machined features include:
Precision holes
Bearing bores
Threaded holes
Sealing surfaces
Mounting faces
Thanks to its relatively soft aluminum matrix, A413 offers good machinability while maintaining dimensional accuracy.
Recommended Cutting Tools
For best machining performance:
Carbide end mills
PCD (Polycrystalline Diamond) tools
Diamond-coated inserts
High-speed steel drills for light operations
Proper coolant application helps improve surface finish and extend tool life.
Surface Finishing Options
Surface treatment enhances appearance, corrosion resistance, and wear performance.
Powder Coating
Provides:
Excellent corrosion resistance
Attractive appearance
Wide color selection
Good weather resistance
Ideal for outdoor products and automotive components.
Chromate Conversion Coating
Often used before painting or powder coating.
Benefits include:
Improved corrosion protection
Better paint adhesion
Electrical conductivity retention
Shot Blasting
Creates a uniform matte finish while removing flash and minor casting imperfections.
Commonly used before painting.
Bead Blasting
Glass bead blasting creates a smooth satin appearance without removing excessive material.
Popular for:
Consumer electronics
Medical equipment
Decorative components
Painting
Industrial paints improve aesthetics and provide additional environmental protection.
Electroless Nickel Plating
For components requiring:
Improved wear resistance
Better corrosion protection
Enhanced hardness
Attractive metallic appearance
CNC Surface Refinement
Critical sealing surfaces may undergo precision machining after casting to achieve tight flatness and surface roughness requirements.
Choosing the Right Finish
| Surface Finish | Primary Benefit | Typical Applications |
| Powder Coating | Corrosion resistance | Automotive, outdoor equipment |
| Chromate Conversion | Paint adhesion | Industrial components |
| Shot Blasting | Surface cleaning | General die cast parts |
| Bead Blasting | Decorative finish | Electronics, consumer products |
| Nickel Plating | Wear resistance | Industrial machinery |
| Precision Machining | Tight tolerances | Hydraulic and sealing components |
Common Applications of A413 Aluminum Alloy
Thanks to its excellent castability, pressure tightness, corrosion resistance, and thermal conductivity, A413 aluminum alloy is widely used across numerous industries. It is particularly well-suited for medium- to high-volume production of precision die-cast components.
Automotive Industry
The automotive sector is one of the largest users of A413 aluminum alloy. As vehicle manufacturers pursue lighter, more fuel-efficient, and increasingly electric vehicles, aluminum die castings continue to replace heavier steel and iron components.
Common automotive applications include:
Transmission housings
Oil pump housings
Water pump bodies
Air compressor components
Engine covers
Timing covers
Differential housings
Fuel system components
Brake system housings
Electric vehicle motor housings
A413’s excellent leak resistance makes it particularly suitable for fluid-handling components that require long-term sealing performance.
Electric Vehicles (EVs)
Electric vehicles demand lightweight materials with excellent heat dissipation.
A413 is increasingly used for:
Battery cooling plates
Inverter housings
Power electronics enclosures
Charging system components
Electric motor end covers
Cooling system manifolds
Its combination of thermal conductivity and dimensional accuracy helps improve battery efficiency and electronic reliability.
Electronics Industry
Modern electronic devices generate significant heat. Effective thermal management directly affects product lifespan and performance.
Typical electronic applications include:
Heat sinks
LED lamp housings
Power supply enclosures
Communication equipment housings
Industrial controller enclosures
Server cooling components
Network equipment housings
Because A413 transfers heat efficiently while maintaining dimensional stability, it is widely used in electronic cooling applications.
Aerospace Industry
Although aerospace applications often require higher-strength alloys, A413 is commonly selected for non-critical structural components where lightweight construction and precision casting are priorities.
Examples include:
Equipment housings
Sensor brackets
Instrument enclosures
Mounting brackets
Hydraulic covers
Cabin equipment components
Its excellent corrosion resistance also helps improve long-term durability in challenging operating environments.
Industrial Machinery
Industrial equipment manufacturers rely on A413 for components that combine complex geometry with high production efficiency.
Common industrial applications include:
Pump housings
Valve bodies
Pneumatic cylinders
Compressor housings
Gearbox covers
Hydraulic manifolds
Machine tool components
Automation equipment housings
The alloy’s superior castability enables manufacturers to consolidate multiple machined components into a single die-cast part, reducing assembly time and production costs.
Medical Equipment
Medical devices require lightweight, corrosion-resistant, and dimensionally stable components.
Typical applications include:
Imaging equipment housings
Diagnostic device enclosures
Medical pump components
Laboratory instrument frames
Surface treatments such as powder coating or nickel plating are often applied to improve durability and appearance.
Consumer Products
Many everyday products incorporate A413 aluminum castings because they combine attractive surface finishes with excellent mechanical performance.
Examples include:
Power tools
Lawn and garden equipment
Kitchen appliances
Coffee machines
Air compressors
Outdoor lighting fixtures
Fitness equipment
Home automation devices
FAQs
1. What is A413 aluminum alloy primarily used for?
A413 is mainly used for high-pressure die cast components requiring excellent castability, leak resistance, and thermal conductivity. Common applications include automotive housings, electronic enclosures, pumps, compressors, and industrial machinery.
2. Is A413 suitable for high-pressure die casting?
Yes. A413 is specifically developed for high-pressure die casting and is widely recognized for its outstanding mold-filling capability and dimensional accuracy.
3. How does A413 compare with A380 aluminum?
A413 offers better fluidity, pressure tightness, and thermal conductivity, making it ideal for complex, leak-sensitive components. A380 generally provides higher mechanical strength and is a popular choice for general-purpose die castings.
4. Can A413 aluminum be CNC machined?
Yes. A413 can be machined using standard CNC milling, turning, drilling, and tapping processes. Secondary machining is commonly used to achieve precise dimensions, sealing surfaces, and threaded features.
5. Is A413 corrosion resistant?
Yes. A413 has good natural corrosion resistance due to its protective oxide layer. Additional surface treatments such as powder coating, chromate conversion coating, or electroless nickel plating can further improve performance in harsh environments.
6. Can A413 be anodized?
Traditional decorative anodizing is generally not recommended because the alloy’s high silicon content can result in a darker, uneven finish. If appearance is important, powder coating, painting, or chemical conversion coatings are often better alternatives.
7. What is the main advantage of A413 over other die casting alloys?
Its greatest advantage is exceptional castability. The high silicon content allows molten metal to fill complex dies with minimal defects, making A413 ideal for thin-walled, pressure-tight, and highly detailed components.
8. Is A413 suitable for electric vehicle components?
Yes. Its lightweight structure and excellent thermal conductivity make A413 well-suited for EV battery housings, inverter enclosures, motor components, and cooling system parts.
9. What surface finishes are commonly used on A413 castings?
Common finishing options include:
Powder coating
Painting
Chromate conversion coating
Glass bead blasting
Shot blasting
Electroless nickel plating
Precision CNC machining for sealing surfaces
The appropriate finish depends on the component’s functional and aesthetic requirements.
10. How can I improve the quality of A413 die cast parts?
High-quality A413 castings depend on several factors:
Optimized part design
Proper die design and venting
Controlled casting parameters
High-quality alloy material
Vacuum die casting (when appropriate)
Experienced tooling and manufacturing partners
Comprehensive quality inspection throughout production
Working closely with an experienced die casting manufacturer during the design phase can significantly reduce defects and improve overall product performance.
Conclusion
Compared with general-purpose die casting alloys, A413 excels in applications requiring intricate geometries, thin-wall sections, and reliable sealing performance. While it may not offer the highest mechanical strength among aluminum casting alloys, its superior castability and manufacturing efficiency often make it the most cost-effective solution for medium- and high-volume production.
Selecting the right alloy is only part of the equation. Success also depends on optimized product design, precision tooling, advanced die casting processes, and rigorous quality control.
Partner with TOPS Precision for Custom A413 Aluminum Die Casting
At TOPS Precision, we specialize in high-quality aluminum die casting solutions tailored to your exact requirements. From design-for-manufacturing (DFM) support and precision mold development to CNC machining, surface finishing, and full assembly, our experienced engineering team delivers reliable, cost-effective components for demanding industries worldwide.
Whether you need prototype development or high-volume production, we are committed to providing consistent quality, competitive pricing, and fast turnaround times.
Contact TOPS Precision today to discuss your A413 aluminum die casting project and receive a fast, no-obligation quotation from our engineering team.
